52-463-D36-1.6

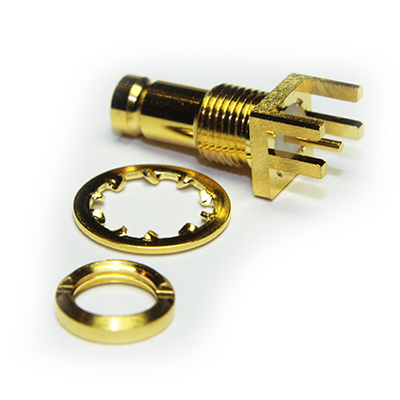

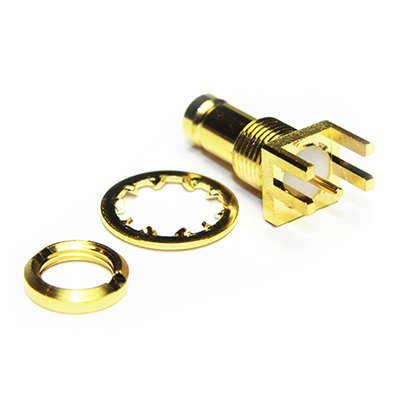

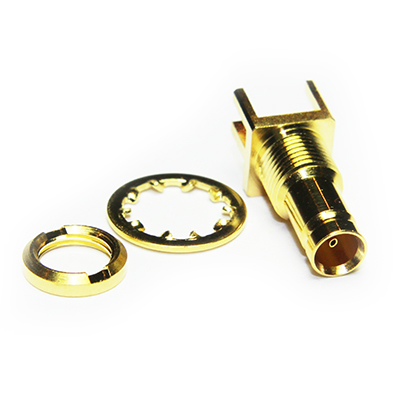

1.0/2.3 True 75ohm end launch PCB jack for fitting to a 1.6mm thick PCB, with gold plated soldered body and centre contact.

From £2.00 each ex VAT
1-9 = £3.00 | 10-24 = £2.70 | 25-49 = £2.50 | 50-99 = £2.20 | +100 = £2.00

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Electrical Specification
Impedance	75 Ohm
Frequency Range	4.5Ghz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-18.3 dB @ 4.5GHz
Mechanical Specification
Design Standard	IEC 61169-29
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Solder
Mating Cycles	500
Weight
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Performance Data available on request, please contact COAX

Bulkhead Nut Spanner

Interface Dimensions	C-75-Ohm-1.0-2.3
Data Sheet	52 463 D36 16 REV B00 1
