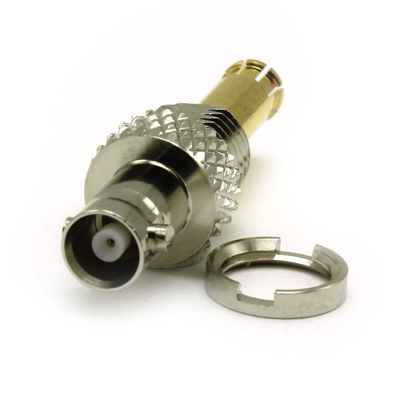

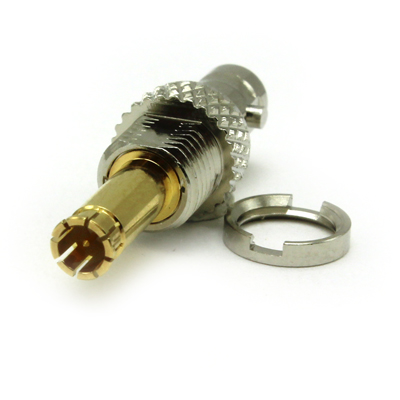

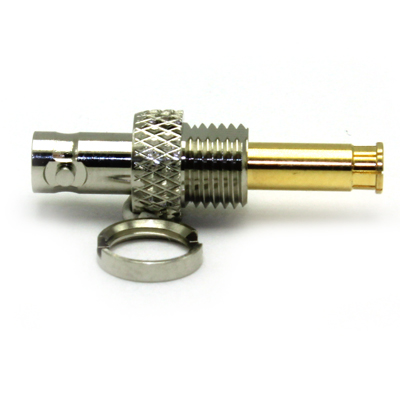

Micro BNC Bulkhead Push-On Plug to Jack Adaptor (12G)

67-512-B66

Micro BNC 75 ohm Bulkhead Push-On (without the bayonet cap ) Plug to Jack Adaptor . This true 75 ohm Adaptor is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated centre contact.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Return Loss -17db @ 12Ghz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Mating Cycles 500
Weight 3g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Jack Brass
Outer Contact Plug Beryllium Copper
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Jack Plating Nickel
Outer Contact Plug Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
Return Loss
3.0GHz -25 dB
6.0GHz -23 dB
9.0GHz -21 dB
12.0GHz -17 dB

Assembly

Accessories

6.4 x 7.5 x 2 mm Castle Nut Spanner 1/4" Hex Drive 96-1135

Downloads

Interface Dimensions C-MICRO-BNC
Data Sheet 67 512 B66 REV A02 1
