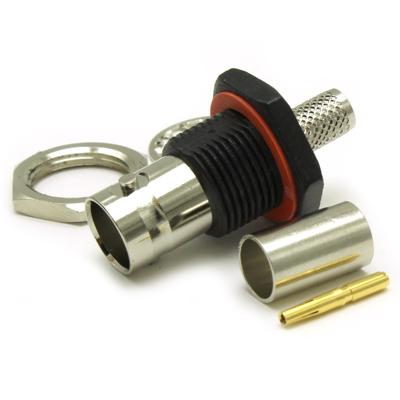

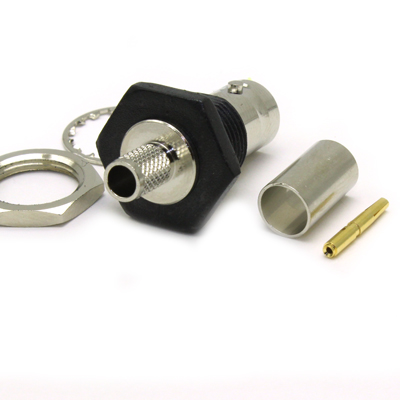

BNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack

10-258-B36-FB

BNC 75 ohm insulated straight bulkhead crimp jack, rear mounted, for applications up to 4.5GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for cables in group FB

From £2.90 each ex VAT
1-9 = £3.70 |  10-24 = £3.52 |  25-49 = £3.35 |  50-99 = £3.15 |  +100 = £2.90

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17.9 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 120N min
Weight 13g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -50 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS ( Black )
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group FB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 1505A FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.7 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505R FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Canare L-4CFB FB 75 6.1 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Canare L-4CHD FB 75 6.1 PEF 3.68 BC 0.82 1/0.82 Foil and Braid
Conducfil 14472 FB 75 5.9 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Draka 0.8/3.7AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Draka HD PRO 0.8/3.7 AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Image 720 FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Percon VK6 FB 75 6 PEF 3.7 BC 0.81 1/0.81 Foil and Braid
Percon VK66 FB 75 6.14 PEF 3.7 BC 0.97 7/0.29 Double Copper Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -28.9dB
2GHz -22.2dB
3GHz -22.2dB
4.5GHz -17.9dB

Assembly

Assembly Process AP001
Stripping Dimensions 10-258-B36-SD
Centre Contact 1.72 mm Hex 96-HTS-76
Outer Contact 6.48mm Hex 96-HTS-76

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76
16mm dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions 10-258-B36-SD
Data Sheet 10 258 B36 FB REV A00 1
Assembly Process AP001
