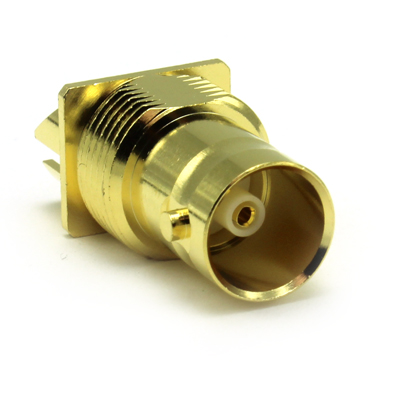

12GHz BNC End Launch Bulkhead Jack True 75 Ohm (2.2mm board)

10-462-1-D126 - 2.2

12GHz BNC True 75 Ohm end launch PCB bulkhead jack. This connector gives stable low loss performance to beyond 12GHz and is ideal for 4K / Ultra HD broadcast applications. Suitable for fitting to a 2.2mm PCB. Centre and inner contacts are gold plated.
This Connector is Supplied Without Nuts or Washers,for Suitable Nuts and Washers Please See the Accessories Tab

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 12.33g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
Return Loss

Assembly

Centre Contact Solder
Outer Contact Solder

Accessories

16mm dia Castle Nut 100-075
Castle Nut Spanner 96-1140
14mm AF x 5 mm Wide Black Plated Hex Nut 100-112
15mm AF x 3 mm Wide Black Plated Hex Nut 100-110
16mm AF x 3 mm Wide Nickel Plated Hex Nut 100-027
16mm Dia Locking Washer 100-028

Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 462 1 D126 22 REV A00 1
