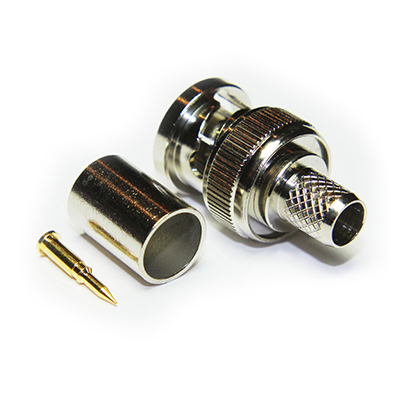

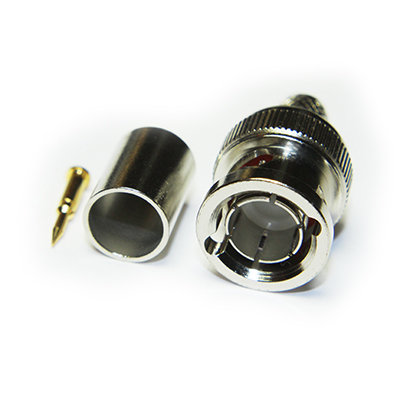

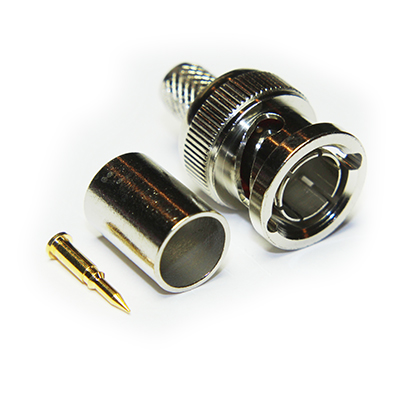

BNC Straight Crimp / Crimp Plug

10-005-A6-GA

BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for PSF1/2 or similar cables in group GA

From £2.50 each ex VAT
1-9 = £3.41 |  10-24 = £3.22 |  25-49 = £2.86 |  50-99 = £2.64 |  +100 = £2.50

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 150N min
Weight 10.95g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group GA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
PSF 1/2 GA 75 7.5 PE 4.85 BC 0.8 1/0.80 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.73mm Hex 96-336D
Outer Contact 8.23mm Hex 96-336D

Accessories

Centre Contact Crimp Tool 96-336D
Outer Contact Crimp Tool 96-336D
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Assembly Process AP001
