BNC High Definition Crimp/Crimp Plug, True 75ohm (3G)

10-005-B36-BD

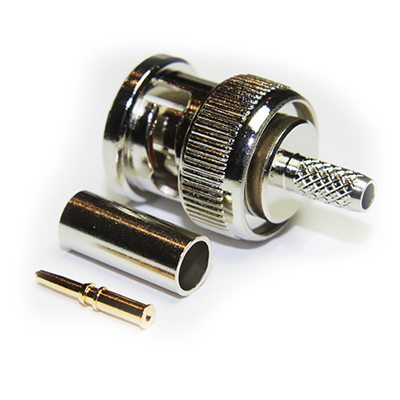

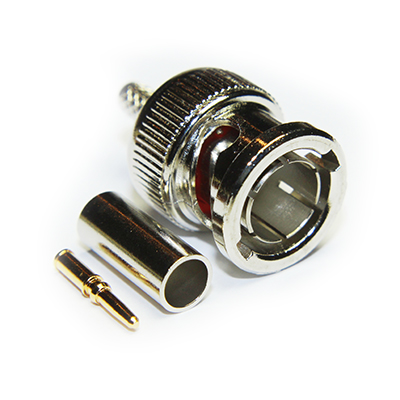

BNC True 75 ohm straight crimp plug, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for BT3002 or similar cables in group BD.

From £1.37 each ex VAT
1-9 = £1.75 |  10-24 = £1.52 |  25-49 = £1.47 |  50-99 = £1.42 |  +100 = £1.37

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.1 dB @ 3GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 220N min
Weight 8.5g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group BD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT3002 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75024 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75025 BD 75 4.55 PE 2.95 BC 0.32 1/0.32 Double Copper Braid

Performance

Performance Data 10-005-B36-BD PD

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72mm Hex 96-336A
Outer Contact 4.52mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-HTS-43
BNC Plug Insertion And Extractor Tool 96-2208
Black Strain Relief Boot 97-801-BK-04
White Strain Relief Boot 97-801-WH-04

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10-005-B36-BD C00-2
Assembly Process AP001
Performance Data 10-005-B36-BD PD
