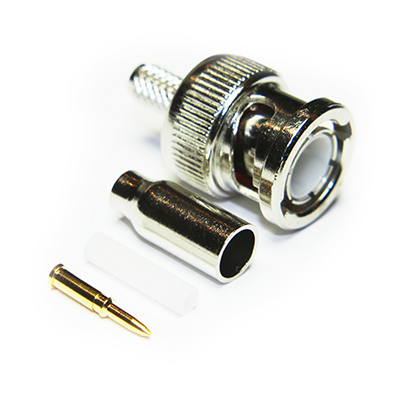

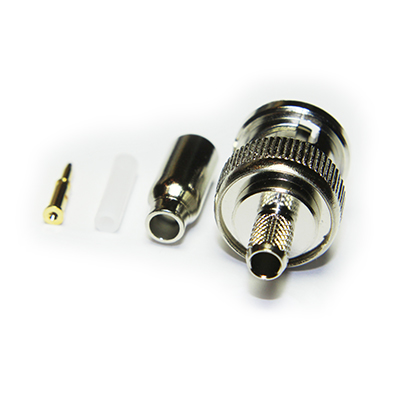

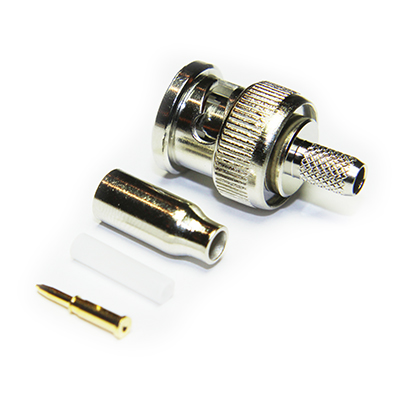

10-006-A0-AB - BNC Straight Crimp / Crimp Plug (1GHz) (4 Part)

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-27.1 dB @ 1GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	60N min
Weight	9.35g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 179DT	AB	75	2.54	PEF	1.42	BC	0.31	1/0.31	Foil and Braid
RG179 B/U	AB	75	2.54	PTFE	1.6	SCCS	0.3	7/0.1	Copper Braid
RG179 Solid	AB	75	2.54	Foam	1.6	SCSC	0.3	1/0.3	Copper Braid
RG179 Stranded	AB	75	2.54	Foam	1.6	SCSC	0.3	7/0.1	Copper Braid
RG187	AB	75	2.67	PTFE	1.52	SCCS	0.3	7/0.1	Copper Braid

Performance Data

Return Loss
1GHz	-27.2dB
2GHz	-14.2dB

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
Rotary Cable Stripper	96-312X
BNC Plug Insertion And Extractor Tool	96-2208
Black Strain Relief Boot	97-800-BK-03
Blue Strain Relief Boot	97-800-BU-03
Red Strain Relief Boot	97-800-RE-03
Green Strain Relief Boot	97-800-GN-03
Yellow Strain Relief Boot	97-800-YE-03
