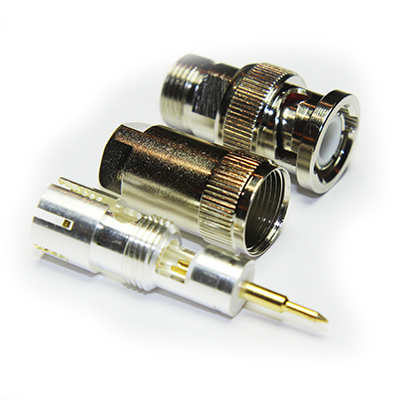

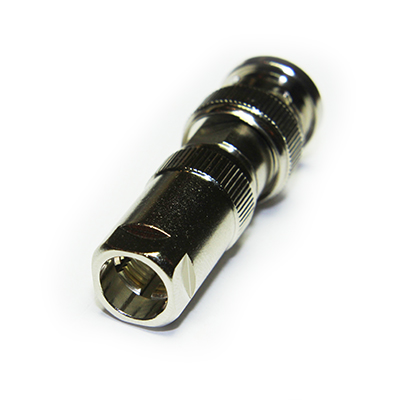

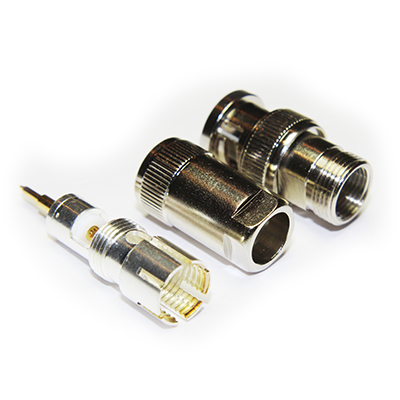

BNC Straight Secure Fit Plug

10-021-A0-CA

75 ohm BNC plug for easy fit to RG6 or similar cables in group CA. Centre conductor is soldered to the contact and cable braid is clamped, no special tooling is required.

From £2.34 each ex VAT
1-9 = £3.12 |  10-24 = £2.84 |  25-49 = £2.67 |  50-99 = £2.46 |  +100 = £2.34

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Screw lock
Mating Cycles 100
Contact Retention 10N min
Cable Retention 200N min
Weight 20g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group CA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
CT100 CA 75 6.5 PEF 4.45 BC 1 1/1.0 Foil and Braid
RG6 CA 75 6.99 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
WSC100 CA 75 6.65 PEF 4.7 CCS 1.02 1/1.02 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact Screw - On

Accessories

Downloads

Interface Dimensions C-75-Ohm-BNC
