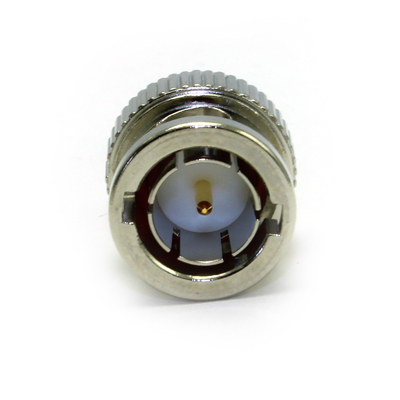

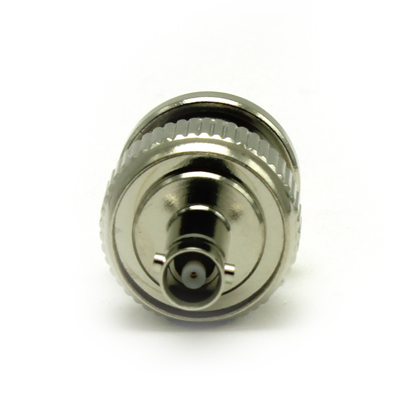

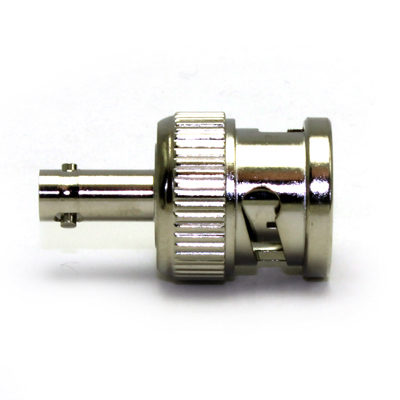

Micro BNC Jack to BNC Plug 18Ghz Straight Adaptor

74-1067-511

Inter-Series adaptor for connection between different connector families. Micro BNC Jack to BNC Plug 18Ghz Straight Adaptor

From £7.25 each ex VAT
1-9 = £9.25 |  10-24 = £8.00 |  25-49 = £7.50 |  50-99 = £7.50 |  +100 = £7.25

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 0-18 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -20.5 db @ 18Ghz
Mating Cycles 500
Mechanical Specification
RoHS Compliant Yes
Weight 8.8g
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions C-75-Ohm-BNC

Accessories


Downloads

Interface Dimensions C-MICRO-BNC
Stripping Dimensions C-75-Ohm-BNC
Data Sheet 74 1067 511 REV B03 1
