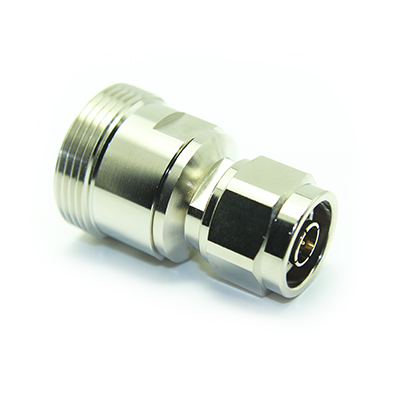

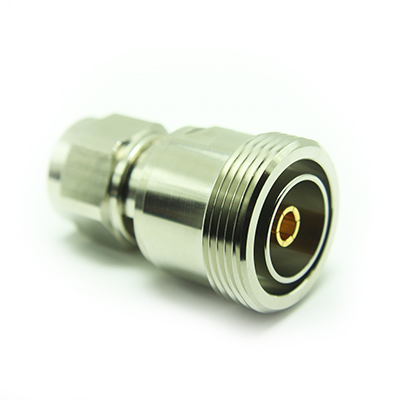

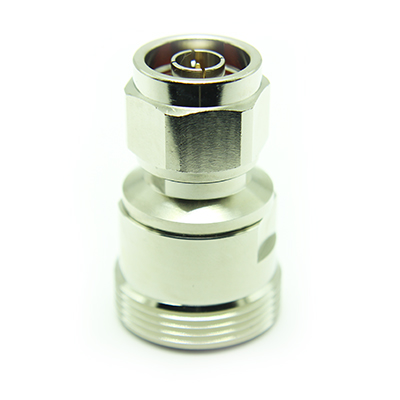

N Plug to 7/16 Jack Straight Adaptor

74-2555-511-P3

Inter-Series adaptor for connection between different connector families. N Type Plug to 7/16 Jack Straight Adaptor

From £14.78 each ex VAT
1-9 = £20.70 |  10-24 = £18.48 |  25-49 = £16.69 |  50-99 = £15.68 |  +100 = £14.78

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-6 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Weight 91g
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions C-7-16

Accessories


Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions C-7-16
