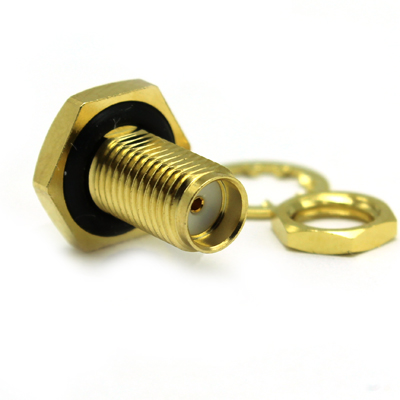

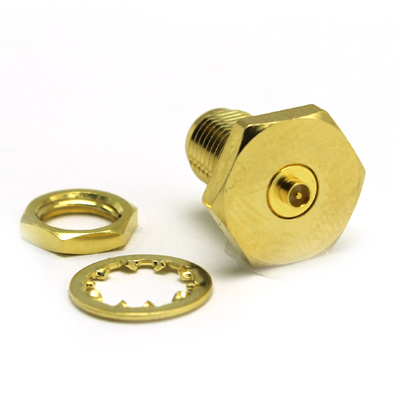

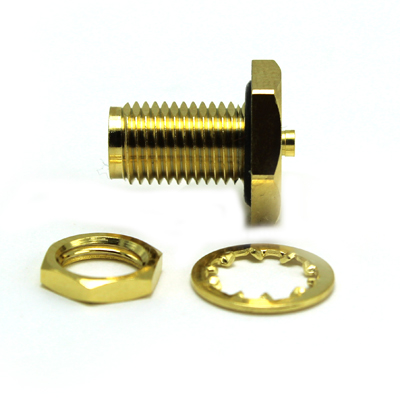

SMA Bulkhead Jack to UFL Jack Adaptor

74-3049-501-D3

SMA Bulkhead Jack to UFL Jack Adaptor.

From £7.99 each ex VAT
1-9 = £12.75 |  10-24 = £9.99 |  25-49 = £8.97 |  50-99 = £8.56 |  +100 = £7.99

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Mating Cycles 500
Contact Retention 27N min
Max Panel Thickness 3mm
Weight 3.56g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP65
Materials
Centre Contact BeCu
Outer Contact Brass
Insulator PTFE
Locking Washer Stanliss Steel
Flange Gasket Silicone
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories


Downloads

Interface Dimensions C-SMA
Data Sheet 74 3049 501 D3 REV A00 2
