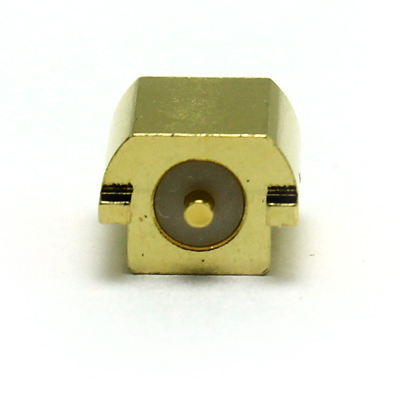

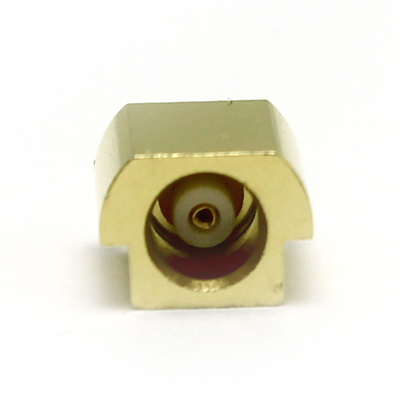

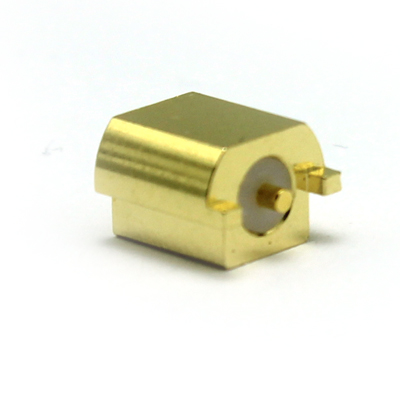

Specification
| Electrical Specification |
| Impedance |
50 Ohm |
| Frequency Range |
Up to 6GHz |
| Dielectric Withstand Voltage |
500 Veff |
| Insulation Resistance |
1000 M-Ohm |
| Return Loss |
-29.3 dB @ 6GHz |
| Mechanical Specification |
| Design Standard |
CECC22220 |
| RoHS Compliant |
Yes |
| Centre Contact Termination |
Solder |
| Outer Contact Termination |
Solder |
| Mating Cycles |
500 |
| Weight |
1.09g |
| Mating Force |
10N Max |
| Un-Coupling Force |
20N Max |
| Environmental Specification |
| Operating Temperature |
-55 to +155 Deg C |
| IP Rating ( Mated ) |
IP40 |
| Materials |
| Centre Contact |
Brass |
| Outer Contact |
Beryllium Copper |
| Insulator |
PTFE |
| Centre Contact Plating |
Gold |
| Outer Contact Plating |
Gold |
| Pack Size |
1 |
Suitable for Cables in Group
N/A
No specific cables are associated with this connector
Assembly
| Centre Contact |
Solder |
|
| Outer Contact |
Solder |
|
