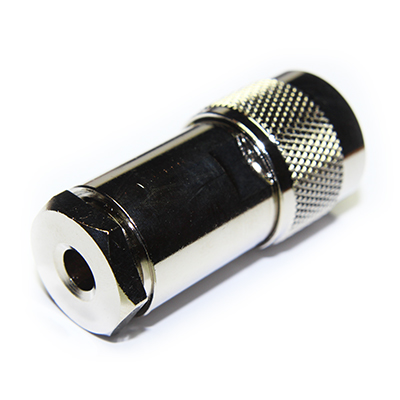

N Type Solder / Clamp Plug

25-002-A3-AH

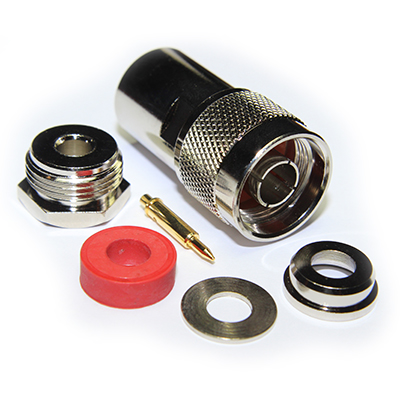

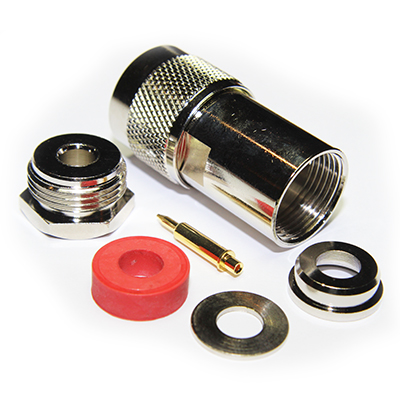

N Type 50 ohm solder clamp straight plug. The gold plated centre contact is soldered the braid and jacket are clamped. The outer contact body is nickel plated. Suitable for use with RG58 and similar cables in group AH.

From £3.34 each ex VAT
1-9 = £4.45 |  10-24 = £4.18 |  25-49 = £3.71 |  50-99 = £3.52 |  +100 = £3.34

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Clamp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 100N min
Weight 53.3g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7806R AH 50 4.95 PEF 2.8 BC 0.94 1/0.94 Foil and Braid
Belden 9203 AH 50 4.95 PE 2.95 TC 0.9 19/0.18 Copper Braid
KX15 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
KX23 AH 50 5.1 PTFE 2.95 SC 1.02 7/0.34 Double Copper Braid
PSF 1/6 AH 50 5 PE 2.95 BC 0.96 7/0.32 Double Copper Braid
RG141 AH 50 4.83 PTFE 3 SCCS 0.94 1/0.94 Copper Braid
RG58 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
Times LMR®195 AH 50 4.95 PEF 2.79 BC 0.94 1/0.94 Foil and Braid
URM43 AH 50 5 PE 2.95 BC 0.9 1/0.9 Copper Braid
URM76 AH 50 5 PE 2.95 TC 0.96 7/0.32 Copper Braid
WBC195 AH 50 4.95 PE 2.79 BC 0.94 1/0.94 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP016
Stripping Dimensions 25-002-SD
Centre Contact Solder
Outer Contact Clamp

Accessories

Rotary Cable Stripper 96-312B

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions 25-002-SD
Assembly Process AP016
