N Type Crimp / Crimp Plug

25-005-B3-AK

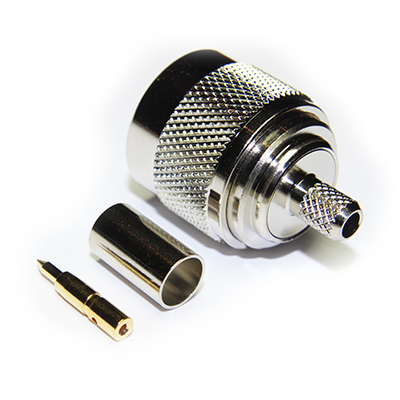

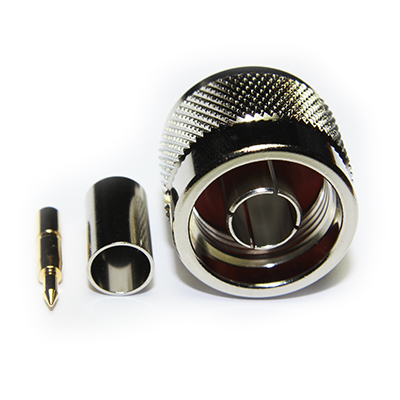

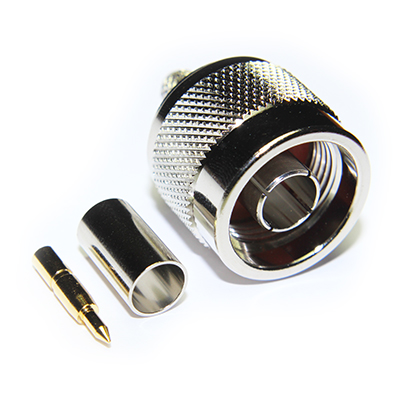

N Type 50 ohm full crimp straight plug. The gold plated centre contact and crimp sleeve are annealed to provide a robust and durable termination. The outer contact body is nickel plated. Suitable for use with RG223 and similar cables in group AK.

From £2.79 each ex VAT
1-9 = £3.72 |  10-24 = £3.49 |  25-49 = £3.10 |  50-99 = £2.94 |  +100 = £2.79

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 220N min
Weight 33.4g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AK

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG142 AK 50 4.95 PTFE 2.95 CCS 0.94 1/0.94 DoubleCopperBraid
RG223 AK 50 5.38 PE 2.95 SC 0.89 1/0.89 DoubleCopperBraid
RG400 AK 50 4.95 PTFE 2.95 SCCS 0.97 19/0.19 DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -29.1dB
3GHz -35.8dB
4.5GHz -21.dB
6GHz -17dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions SD01
Data Sheet 25 005 B3 AK REV C00 1
Assembly Process AP001
