N Type Crimp / Crimp Plug

25-005-B3-AN

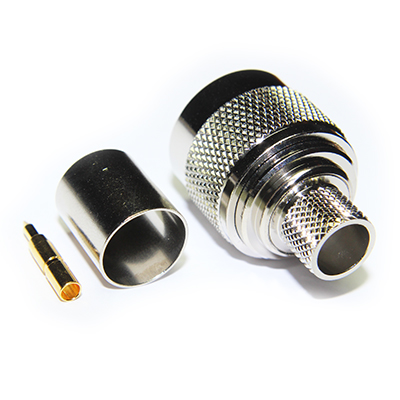

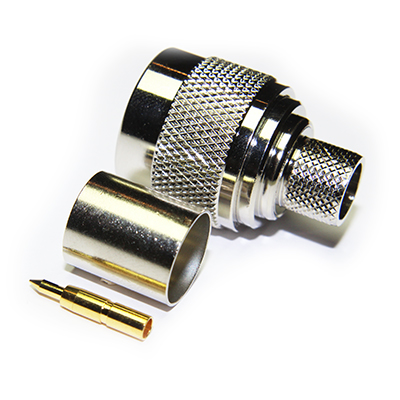

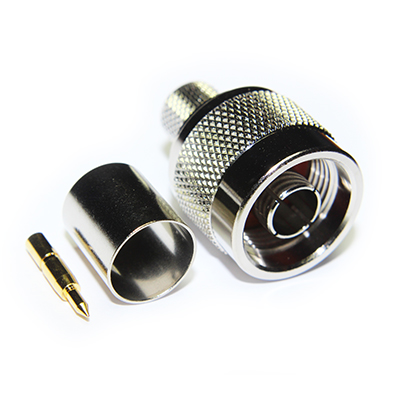

N Type 50 ohm full crimp straight plug. The gold plated centre contact and crimp sleeve are annealed to provide a robust and durable termination. The outer contact body is nickel plated. Suitable for use with RG213 and similar cables in group AN.

From £3.39 each ex VAT
1-9 = £4.52 |  10-24 = £4.24 |  25-49 = £3.77 |  50-99 = £3.57 |  +100 = £3.39

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 150N min
Weight 33.5g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AN

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX4 AN 50 10.3 PE 7.25 BC 2.25 7/0.75 CopperBraid
RG213 AN 50 10.29 PE 7.24 BC 2.25 7/0.75 CopperBraid
URM67 AN 50 10.3 PEF 7.25 BC 2.25 7/0.75 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 3.25 mm Hex 96-336K
Outer Contact 10.9 mm Hex 96-336K

Accessories

Centre Contact Crimp Tool 96-336K
Outer Contact Crimp Tool 96-336K
Rotary Cable Stripper 96-312S

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions SD01
Data Sheet 25 005 B3 AN REV C00 1
Assembly Process AP001
