N Type Crimp / Crimp Plug

25-005-B3-DB

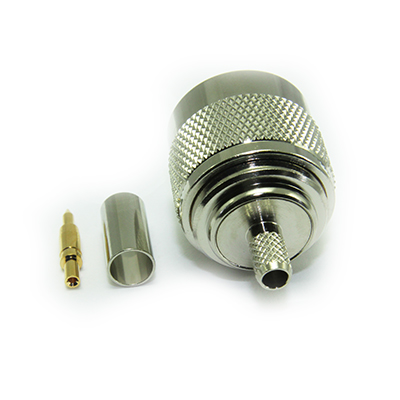

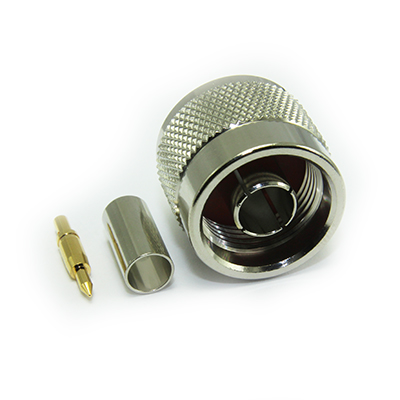

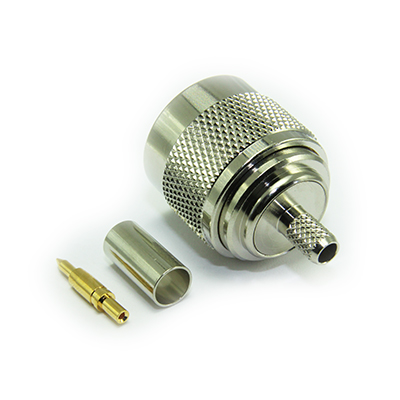

N Type 50 ohm full crimp straight plug. The gold plated centre contact and crimp sleeve are annealed to provide a robust and durable termination. The outer contact body is nickel plated. Suitable for use with Times LMR®240 and similar cables in group DB.

From £2.89 each ex VAT
1-9 = £3.85 |  10-24 = £3.61 |  25-49 = £3.21 |  50-99 = £3.42 |  +100 = £2.89

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 10GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -8.76db @ 9GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 150N min
Weight 33g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 155 A00 DB 50 5.4 PEF 3.9 BC 1.41 19/0.28 Foil and Braid
Belden 155 PE DB 50 10.3 PEF 3.9 BC 1.4 19/0.28 Foil and Braid
Times LMR®240 DB 50 6.1 PEF 3.81 BC 1.42 1/1.42 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -20.1dB
6GHz -13.3dB
9GHz -8.76dB
12GHz -8.3dB
18GHz -4.35dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.48mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions SD01
Data Sheet 25 005 B3 DB REV B00 1
Assembly Process AP001
