N Type Crimp / Crimp 75 Ohm Plug

25-005-B6-AI

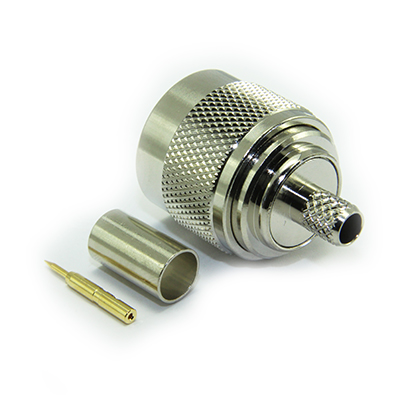

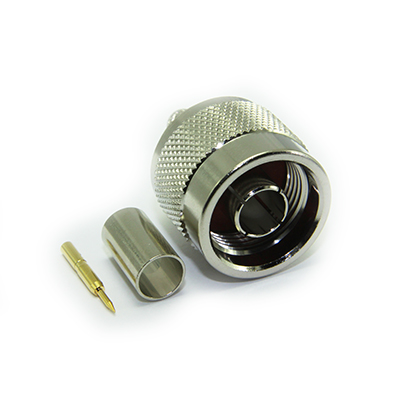

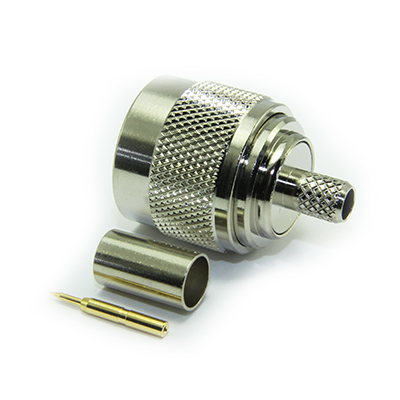

N Type 75 ohm Crimp / crimp straight plug. The gold plated centre contact is annealed for crimping but can be soldered if required, the crimp sleeve is annealed to provide a robust and durable termination. The outer contact body is nickel plated. Suitable for use with RG59 and similar cables in group AI.

From £5.18 each ex VAT
1-9 = £10.16 |  10-24 = £6.10 |  25-49 = £5.80 |  50-99 = £5.18 |  +100 = £5.18

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 4GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 120N min
Weight 31.9g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B
Black Strain Relief Boot 97-800-BK-06
Red Strain Relief Boot 97-800-RE-06
Green Strain Relief Boot 97-800-GN-06
Blue Strain Relief Boot 97-800-BU-06
Yellow Strain Relief Boot 97-800-YE-06
Brown Strain Relief Boot 97-800-BN-06
Grey Strain Relief Boot 97-800-GY-06
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-06
Violet Strain Relief Boot 97-800-VI-06
Crimp Tube 100-008

Downloads

Interface Dimensions C-75-Ohm-N
Stripping Dimensions SD01
Data Sheet 25 005 B6 AI REV B00 1
Assembly Process AP001
