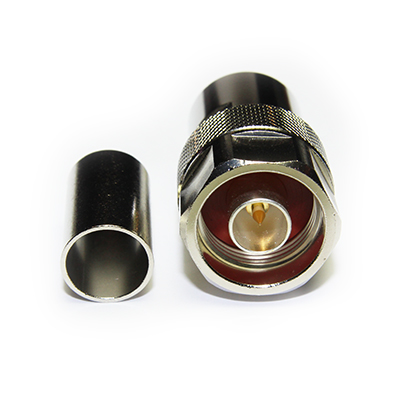

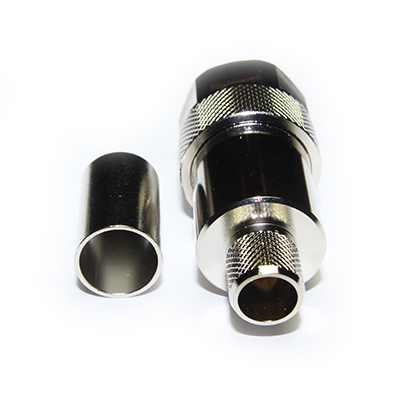

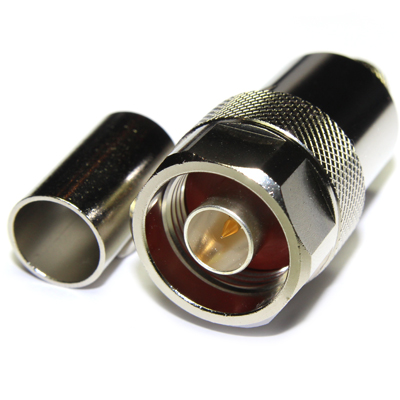

25-018-B3-DE - N Type Easy Fit / Crimp Plug

Electrical Specification
Impedance	50 Ohm
Frequency Range	11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-23.2 dB @ 6GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Easy Fit
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	150N min
Weight	58g
Mating Force	6.6Ncm max
Un-Coupling Force	6.6Ncm max
Recommended Coupling Nut Torque	170Ncm Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Screw Coupling Nut	Brass
Gasket	Silicon
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7810A	DE	50	10.24	PE	7.24	BCCAl	2.74	1/2.74	Foil and Braid
Belden 8214	DE	50	10.2	PE	7.26	BC	2.74	7x19	Copper Braid
Belden 9913	DE	50	10.29	PE	7.26	BC	2.74	1/2.74	Copper Braid
Belden H1000PE	DE	50	10.3	PEF	7.15	BC	2.62	1/2.62	Foil and Braid
Belden H2000 Flex	DE	50	10.3	PEF	7.15	BC	2.62	1/2.62	Foil and Braid
RG8	DE	50	10.24	PE	7.24	BC	2.62	1/2.62	Foil and Braid
Times LMR®400	DE	50	10.29	PEF	7.24	BCCAl	2.74	1/2.74	Foil and Braid
Times LMR®400 Ultraflex	DE	50	10.29	PEF	7.24	BC	2.74	7/0.96	Foil and Braid
TZC50032	DE	50	10.3	PE	7.24	BC	2.74	1/2.74	Copper Braid

Performance Data available on request, please contact COAX

Outer Contact Crimp Tool	96-336K
Rotary Cable Stripper	96-312S
