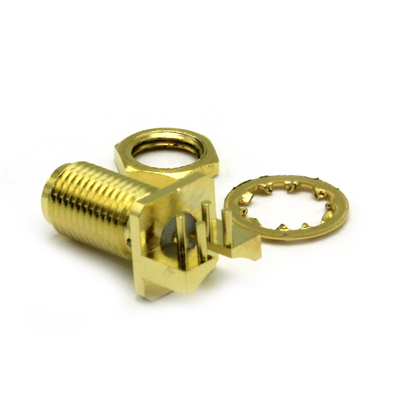

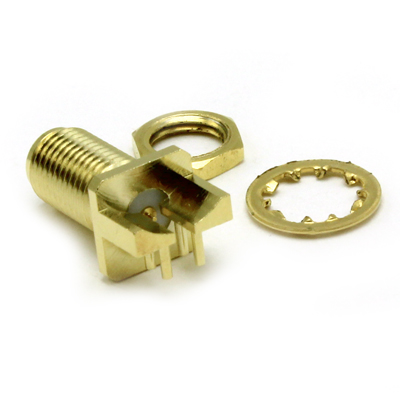

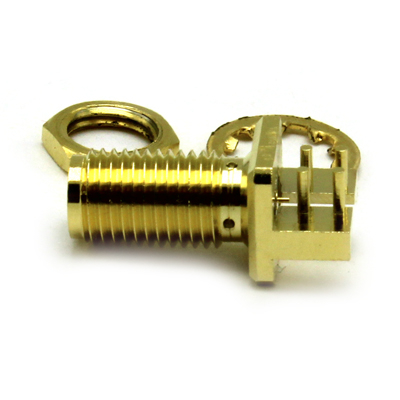

Specification
| Electrical Specification |
| Impedance |
50 Ohm |
| Frequency Range |
18GHz |
| Dielectric Withstand Voltage |
750 Veff |
| Insulation Resistance |
5000 M-Ohm |
| Mechanical Specification |
| Design Standard |
IEC 60169-15 |
| RoHS Compliant |
Yes |
| Centre Contact Termination |
Solder |
| Outer Contact Termination |
Solder |
| Mating Cycles |
500 |
| Contact Retention |
27N min |
| Max Panel Thickness |
3.2mm |
| Weight |
3.21g |
| Mating Force |
23Ncn |
| Un-Coupling Force |
23Ncn |
| Environmental Specification |
| Operating Temperature |
-55 to +155 Deg C |
| IP Rating ( Mated ) |
IP40 |
| Materials |
| Centre Contact |
Beryllium Copper |
| Outer Contact |
Brass |
| Insulator |
PTFE |
| 8mm AF Lock Nut |
Brass Gold Plated |
| Lock Weaser |
Beryllium Copper Gold Plated |
| Centre Contact Plating |
Gold |
| Outer Contact Plating |
Gold |
| Pack Size |
1 |
Suitable for Cables in Group
N/A
No specific cables are associated with this connector
Assembly
| Centre Contact |
Solder |
|
| Outer Contact |
Solder |
|
