SMA Stainless Steel Crimp / Crimp Plug IP68 Mated

30-045-N3-AE

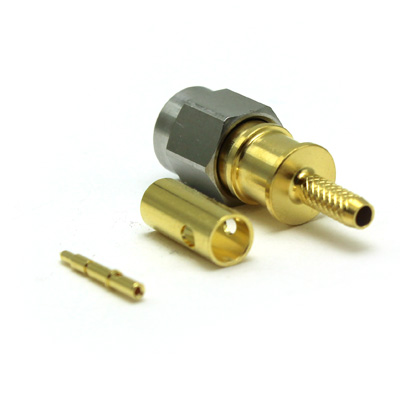

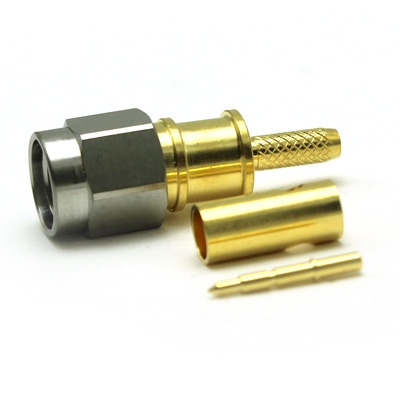

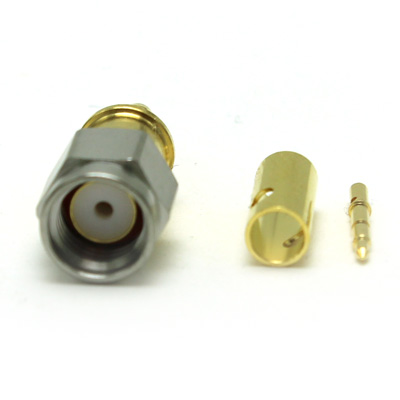

SMA straight full crimp/crimp plug. With gold plated contact and body. Contact and crimp sleeve are annealed for enhanced performance. IP68 Mated when used with heat shrink outer contact and Hex nut made from stainless steel Suitable for use with RD316 and similar cables in group AE.

From £12.00 each ex VAT
1-9 = £15.75 |  10-24 = £12.75 |  25-49 = £12.25 |  50-99 = £12.00 |  +100 = £12.00

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 150N min
Weight 4.13g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Stainless Steel
Insulator PTFE
Screw Coupling Nut Stainless Steel - Passivated
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RD188 AE 50 2.9 PTFE 1.52 SCCS 0.51 7/0.17 Double Copper Braid
RD316 AE 50 2.9 PTFE 1.52 SCCS 0.51 7/0.17 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD03
Centre Contact 1.07mm Square 96-336J
Outer Contact 3.84mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J
Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions SD03
Data Sheet 30 045 N3 AE REV A01 1
Assembly Process AP001
