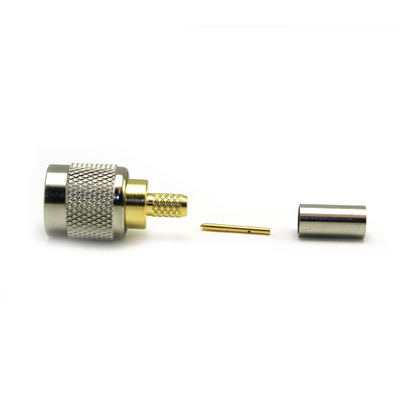

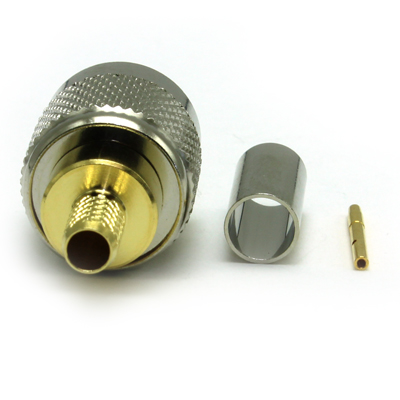

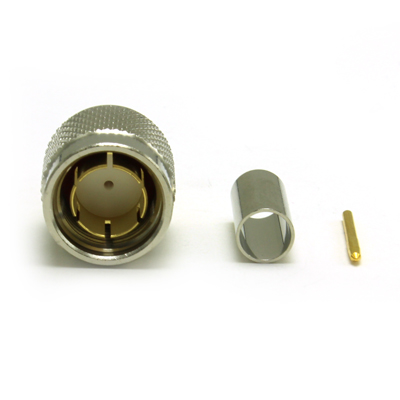

TNC Crimp / Crimp Plug 75 Ohm 12G

13-005-D126-FA

TNC 12G 75 ohm straight crimp plug, for applications up to 12GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre and outer contacts are gold plated. Suitable for cables in group FA.

From £4.14 each ex VAT
1-9 = £12.42 |  10-24 = £8.73 |  25-49 = £6.21 |  50-99 = £4.78 |  +100 = £4.14

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 13.22g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group FA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belcom EventSeries HD600 LSZH FireFighter FA 75 4.5 PEF 2.8 BC 0.65 1/0.65 Foil and Braid
Belden 1855ECH FA 75 4.6 Foam 2.9 BC 0.65 1/0.65 Foil and Braid
Belden 1855ENH FA 75 4.45 PEF 2.8 TC 0.6 1/0.6 Foil and Braid
Belden 4855ELW FA 75 4.47 Foam 2.89 SCSC 0.66 1/0.66 Foil and Braid
Belden 70080NH FA 75 4.45 PEF 2.9 BC 0.65 1/0.65 Foil and Braid
Belden H123A02 FA 75 4.3 PEF 2.9 CU 0.65 1/0.65 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Canford SDV FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-LFH FA 75 4.6 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-UHD-LFH FA 75 4.5 PEF 2.8 BC 0.7 1/0.7 Foil and Braid
Canford SDV-X-LFH FA 75 4.5 PEF 2.8 BC 0.64 1/0.64 Foil and Braid
Conducfil 9890 FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Draka 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Draka HD PRO 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Image 360 FA 75 4.6 PEF 2.95 BC 0.6 1/0.6 Foil and Braid
Percon VK4 FA 75 4.4 PEF 2.6 BC 0.57 1/0.57 Foil and Braid
Percon VK5 FA 75 4.5 PEF 2.8 BC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
TACHII TCX-2.8CHD FA 75 4.4 PEF 2.7 BC 0.6 1/0.6 Foil and Braid
Van Damme SDI Vision FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid

Performance

Performance Data 13 005 D126 FA PD
Return Loss
3GHz -35db
4.5GHz -34db
6GHz -31db
12GHz -19db
18GHz -14db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 0.95sq 96-HTS-75
Outer Contact 5.41mm Hex 96-HTS-75

Accessories

Centre Contact Crimp Tool 96-HTS-75
Outer Contact Crimp Tool 96-HTS-75

Downloads

Interface Dimensions C-TNC-75
Stripping Dimensions SD01
Data Sheet 13 005 D126 FA REV A00 1
Assembly Process AP001
Performance Data 13 005 D126 FA PD
