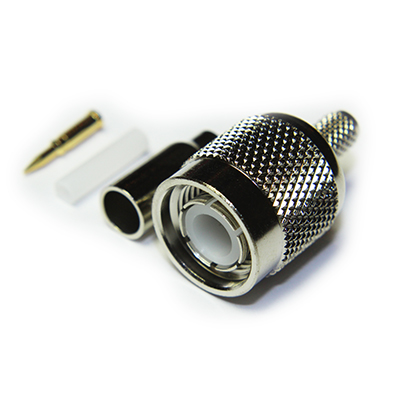

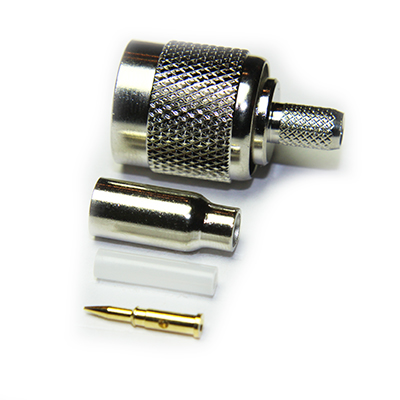

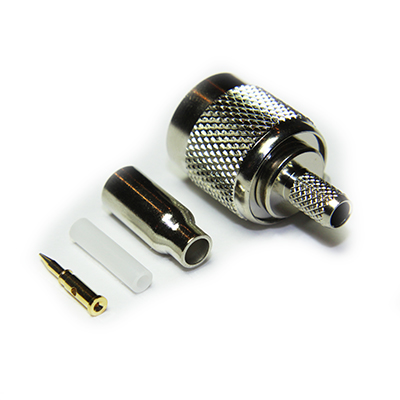

Specification
| Electrical Specification | |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | Up to 11GHz |
| Dielectric Withstand Voltage | 1500 Veff |
| Insulation Resistance | 5000 M-Ohm |
| Mechanical Specification | |
| Design Standard | IEC 60169-17 |
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 250 |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Weight | 12.6g |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
| Environmental Specification | |
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
| Materials | |
| Centre Contact | Brass |
| Outer Contact | Brass |
| Insulator | Delrin |
| Threaded Coupling Nut | Brass |
| Centre Contact Plating | Gold |
| Outer Contact Plating | Nickel |
| Pack Size | 1 |
Suitable for Cables in Group AD
| Cable Type | Cable Group | Impedance Ohms | Jacket O/D mm | Dielectric Material | Dielectric O/D mm |
Centre Conductor | Centre Conductor O/D mm | Centre Conductor Stranding mm |
Shielding |
|---|---|---|---|---|---|---|---|---|---|
| KX22 | AD | 50 | 2.5 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| KX3 | AD | 50 | 2.54 | PE | 1.5 | CCS | 0.48 | 7/0.16 | Copper Braid |
| RG174 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.48 | 7/0.16 | Copper Braid |
| RG188 | AD | 50 | 2.67 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| RG316 | AD | 50 | 2.49 | PTFE | 1.52 | SCCS | 0.51 | 7/0.17 | Copper Braid |
| Times LMR®100 | AD | 50 | 2.79 | PE | 1.52 | BCCS | 0.46 | 1/0.46 | Foil and Braid |
| URM95 | AD | 50 | 2.3 | PE | 1.5 | SCCS | 0.46 | 1/0.46 | Copper Braid |
| WBC100 | AD | 50 | 2.67 | PE | 1.52 | CCS | 0.46 | 1/0.46 | Foil and Braid |
Performance
| Performance Data available on request, please contact COAX |
| Return Loss | |
|---|---|
| 1GHz | -14.6db |
| 2GHz | -10.1db |
| 3GHz | -9.1db |
Accessories
| Centre Contact Crimp Tool | 96-336A |
| Outer Contact Crimp Tool | 96-336A |
| Black Strain Relief Boot | 97-800-BK-03 |
| Red Strain Relief Boot | 97-800-RE-03 |
| Blue Strain Relief Boot | 97-800-BU-03 |
| Yellow Strain Relief Boot | 97-800-YE-03 |
| Green Strain Relief Boot | 97-800-GN-03 |
Downloads
| Interface Dimensions | C-50-Ohm-TNC |
| Stripping Dimensions | SD01 |
| Data Sheet | 13 006 A3 AD REV A00 1 |
| Assembly Process | AP002 |
