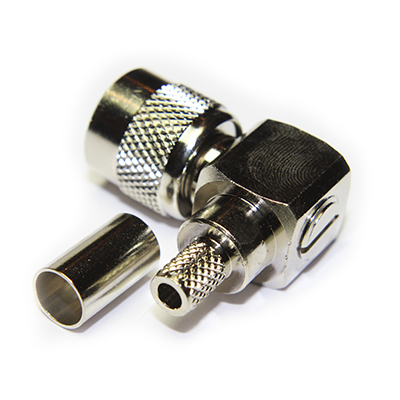

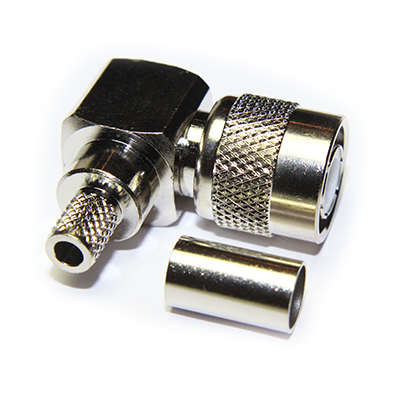

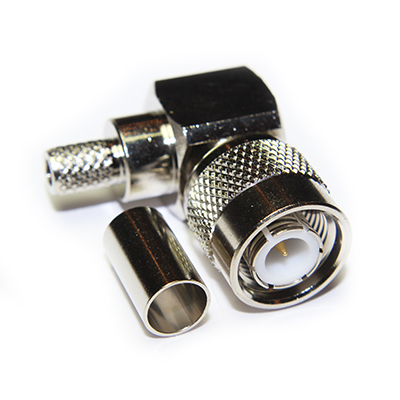

TNC Right Angle Solder / Crimp Plug

13-105-B3-AK

TNC 50 ohm right angle solder crimp plug. Contact is soldered and crimp sleeve is annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG223 or similar cables in group AK.

From £2.70 each ex VAT
1-9 = £3.75 |  10-24 = £3.50 |  25-49 = £3.20 |  50-99 = £3.00 |  +100 = £2.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 220N min
Weight 27.23g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AK

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG142 AK 50 4.95 PTFE 2.95 CCS 0.94 1/0.94 DoubleCopperBraid
RG223 AK 50 5.38 PE 2.95 SC 0.89 1/0.89 DoubleCopperBraid
RG400 AK 50 4.95 PTFE 2.95 SCCS 0.97 19/0.19 DoubleCopperBraid

Performance

Performance Data 13 105 B3 AK PD
Return Loss
1GHz -22.9dB
2GHz -23.6dB
3GHz -24dB
4GHz -17dB
6GHz -12dB

Assembly

Assembly Process AP017
Stripping Dimensions 13 105 B3 AK SD
Centre Contact Solder
Outer Contact 6.5mm Hex 96-336A

Accessories

Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-TNC
Stripping Dimensions 13 105 B3 AK SD
Data Sheet 13-105-B3-AK-REV-A00-2
Assembly Process AP017
Performance Data 13 105 B3 AK PD
