14-045-B3-DA

Shop online for RF Connectors and Cable Assemblies

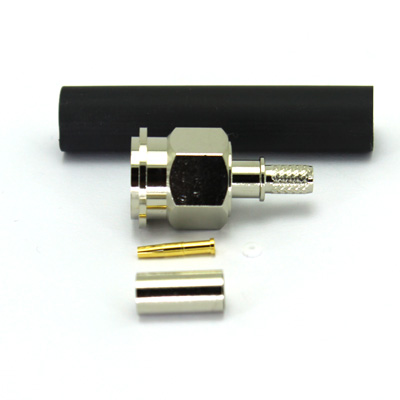

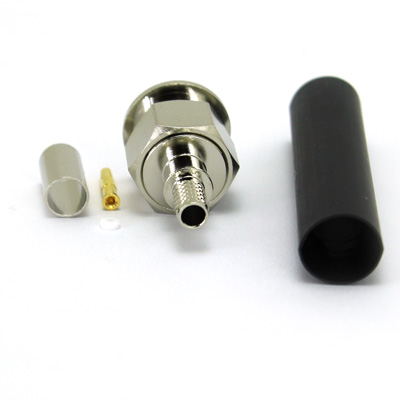

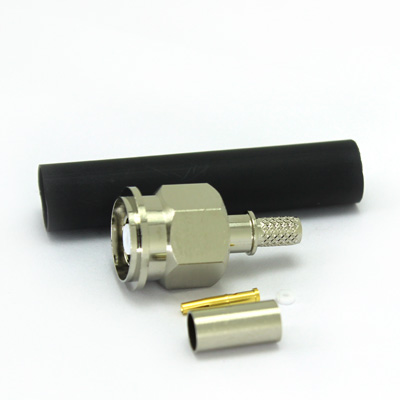

TNC Reverse Polarity IP68 Mated Crimp / Crimp Plug

TNC 50 ohm reverse polarity, straight full crimp plug IP68 When Mated. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact which may also be soldered is gold plated. Suitable for Times LMR®200 or similar cables in group DA.

From £4.75 each ex VAT
1-9 = £6.25 | 10-24 = £5.85 | 25-49 = £5.35 | 50-99 = £4.95 | +100 = £4.75

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	150N min
Weight	13.82g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +110 Deg C
IP Rating ( Mated )	IP68
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Threaded Coupling Nut	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group DA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Times LMR®200	DA	50	4.95	PEF	2.95	BC	1.12	1/1.12	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP004
Stripping Dimensions	SD01
Centre Contact	1.72mm Hex	96-336A
Outer Contact	5.41mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A

Downloads

Interface Dimensions	C-RP-TNC-50
Stripping Dimensions	SD01
Data Sheet	14 045 B3 DA REV B00 1
Assembly Process	AP004
