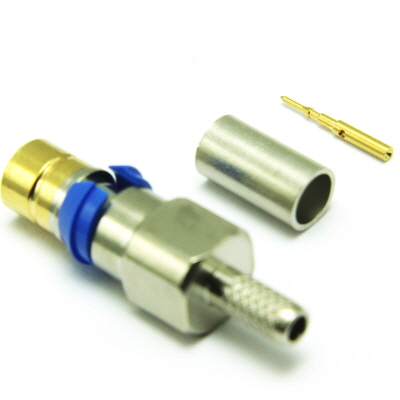

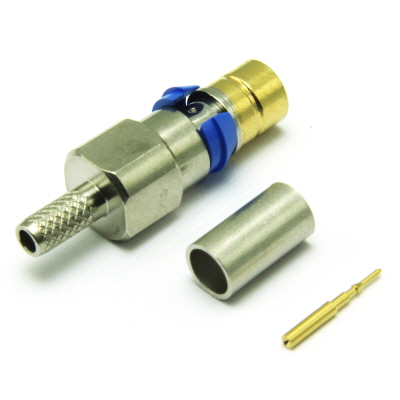

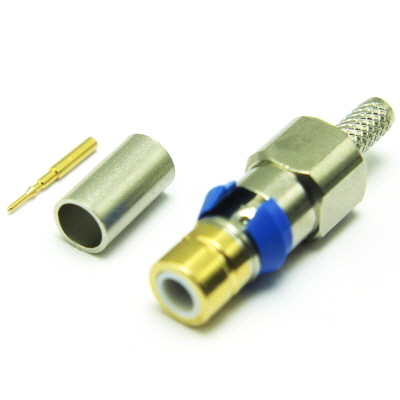

HDC43/7GTIS DDF Crimp Plug

43-012-D6-BF

HDC 43 full crimp plug for mounting on High Density distribution frames, suitable for BT7000 and similar cables in group BF. Gold plated inner and outer contact. HDC 43 is identified by a blue locking clip fitted to the plug body. An extraction tool is required to remove plugs from the distribution frame.

From £2.80 each ex VAT
1-9 = £3.40 |  10-24 = £3.20 |  25-49 = £3.00 |  50-99 = £2.95 |  +100 = £2.80

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range DC 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard BS9210F0022 (BT-RC8003)
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 22N min
Cable Retention 220N min
Weight 6.02g
Mating Force 22N max
Un-Coupling Force 22N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 25

Suitable for Cables in Group BF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid
RA7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP023
Stripping Dimensions SD07
Centre Contact 0.95mm Sq 96-HTS-43
Outer Contact 5.18mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43
HDC "T" Bar Extraction Tool 96-310-832-Tool

Downloads

Interface Dimensions C-SMZ
Stripping Dimensions SD07
Data Sheet 43-012-D6-BF REV A00-3
Assembly Process AP023
