56-409-D3-XX

Shop online for RF Connectors and Cable Assemblies

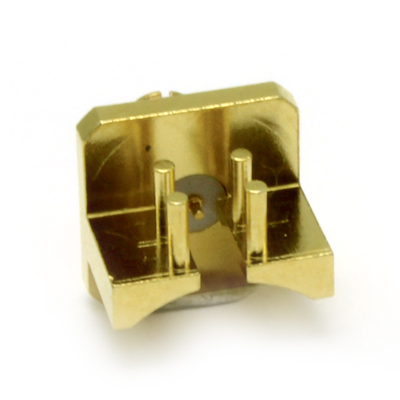

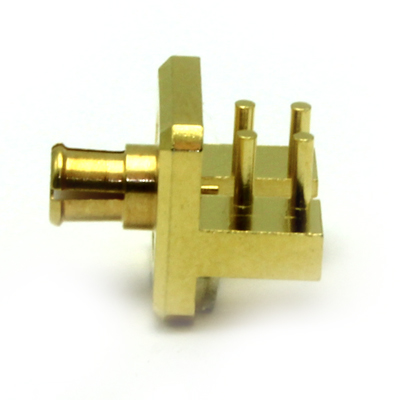

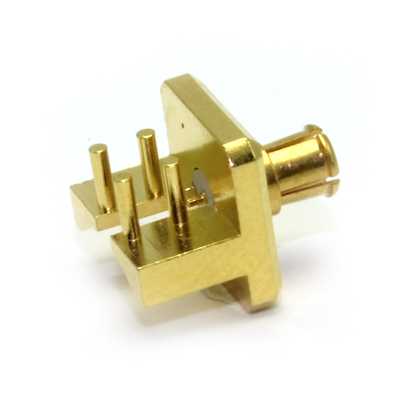

SMP End Launch PCB Mount Plug

SMP are a series of blind mate connectors for high frequency applications, and are ideal for use in high density arrays where shock and vibration conditions may be found. SMP series interface meets MIL STD 348 and is designed to accommodate radial and axial misalignment during mating. Typical applications for SMP series connectors are defence, aerospace and industrial systems including radar arrays and communications.

Please contact COAX Direct for prices/availability

Specification

Specification
Impedance	50 Ohm
Frequency Range	DC 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Solder
Mating Cycles	500
Weight	1.42g
Environmental Specification
Operating Temperature	-55 to +155 Deg C
Materials
Center Contact	Beryllium Copper
Outer Contact	Beryllium Copper
Insulator	PTFE
PCB Mount Body	Brass
Center Contact Plating	Gold
Outer Contact Plating	Gold
PCB Mount Body Plating	Gold

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP034
Centre Contact	Solder
Outer Contact	Solder

Accessories

Downloads

Interface Dimensions	C SMP
Data Sheet	56 409 D3 XX REV A00 1
Assembly Process	AP034
