52-005-B6-AB - 1Ghz - 1.0/2.3 Crimp / Crimp Plug 75 Ohm ( 1Ghz ) (1)

1.0/2.3 Crimp / Crimp Plug 75 Ohm ( 1Ghz )

52-005-B6-AB - 1Ghz

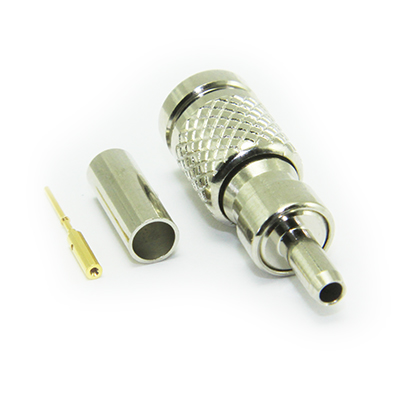

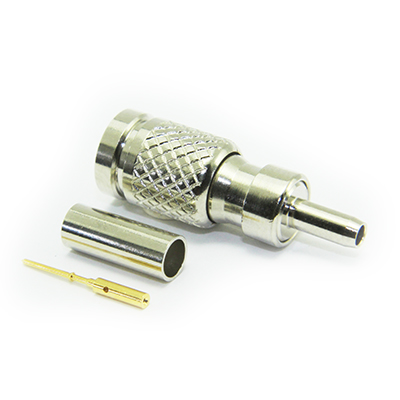

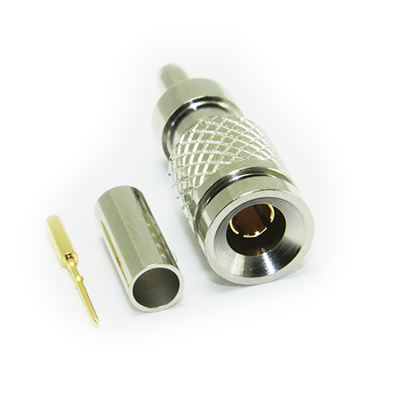

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. This 1 GHz 50 ohm connector is adapted for use with 75 ohm cable. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG179 and similar

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-29
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	60N min
Weight
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 179DT	AB	75	2.54	PEF	1.42	BC	0.31	1/0.31	Foil and Braid
RG179 B/U	AB	75	2.54	PTFE	1.6	SCCS	0.3	7/0.1	Copper Braid
RG179 Solid	AB	75	2.54	Foam	1.6	SCSC	0.3	1/0.3	Copper Braid
RG179 Stranded	AB	75	2.54	Foam	1.6	SCSC	0.3	7/0.1	Copper Braid
RG187	AB	75	2.67	PTFE	1.52	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Performance Data

On request, please contact COAX

Assembly

Assembly Process	AP026
Stripping Dimensions	SD08
Centre Contact	0.95mm Sq	96-HTS-43
Outer Contact	3.25mm Hex	96-HTS-43

Accessories

Centre Contact Crimp Tool	96-HTS-43
Outer Contact Crimp Tool	96-HTS-43
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool	100-1023
1.0/2.3 Extractor Tool	96-1023
Protective PVC Cap	100-135
Black Strain Relief Boot	97-800-BK-03

Downloads

Interface Dimensions	C-75-Ohm-1.0-2.3
Stripping Dimensions	SD08
Data Sheet	52-005-B6-AB-REV-B00-1
Assembly Process	AP026
