Back to 1.0/2.3 1.0/2.3 (DIN)

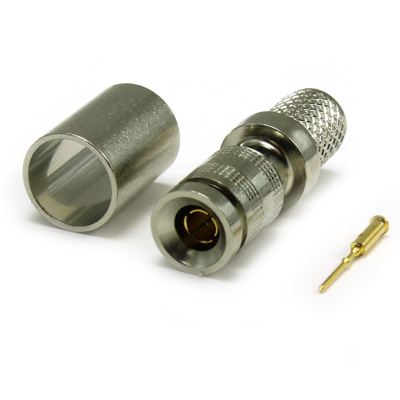

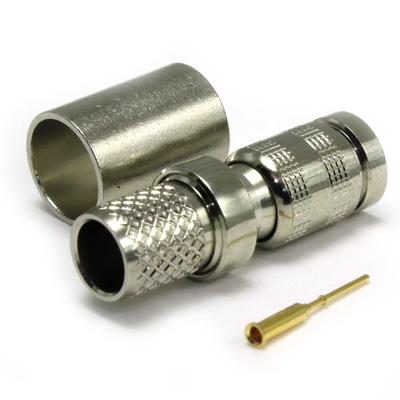

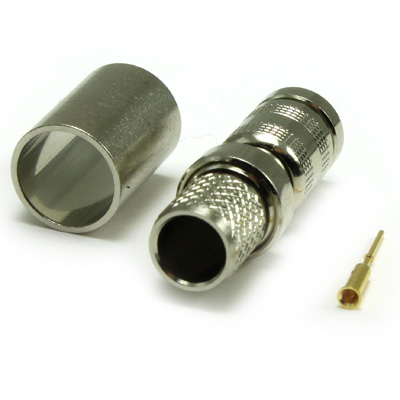

1.0/2.3 Crimp / Crimp Plug True 75 Ohm 12Ghz

52-005-B6-FC - Bulk 100

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with Belden 1694A & 1694F and similar cable in group FC. Bulk pack of 100.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -11.46 dB @ 12GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 6.85g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Beryllium Copper
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 100

Suitable for Cables in Group FC

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70082NH FC 75 6.96 PEF 4.57 BC 1.02 1/1.02 Bonded Foil and Braid
Belcom EventSeries HD1000 LSZH FireFighter FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Belden 1694A FC 75 6.96 FHPE 4.57 BC 1.016 1/1.016 FoilandBraid
Belden 1694F FC 75 7.01 PEF 4.57 BC 1.02 7/0.36 Double Copper Braid
Belden 1695A FC 75 5.82 PEF 4.32 BC 1.02 1/1.02 Foil and Braid
Belden 4694ANH FC 75 6.95 PEF 4.57 SPC 1.02 1/1.02 Foil and Braid
Belden 4694F FC 75 7.0 FHPE 4.57 BC 1.02 1/1.02 Double Copper Braid
Belden 4694P FC 75 5.82 PEF 4.3 SPC 1.02 1/1.02 Foil and Braid
Belden 4694R FC 75 6.98 PEF 4.57 BC 1.02 1/1.02 Copper Braid
Belden H124Co2 FC 75 7.0 Foam 4.4 BC 1.0 1/1.0 Bonded Foil and Braid
Bryant BD SD10F FC 75 7 PEF 4.57 BC 1.1 7/0.36 Double Copper Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Canare L-5CHD FC 75 7.0 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
Canford SDV-F FC 75 6.8 FHPE 4.8 BC 1 19/0.2 Foil and Braid
Canford SDV-L FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-LFH FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-SR FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-X-LFH FC 75 7 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Conducfil 13653 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Draka 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO FLEX 1.0L/4.8 AF Dz FC 75 7 FHPE 4.8 BC 1 7/0.32 Double Copper Braid
Image 1000 FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Percon VK7 FC 75 7 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK70 ENH FC 75 7.1 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK77 FC 75 7 PEF 4.7 BC 1.08 7/0.36 Double Copper Braid
TACHII TCX-4CHD FC 75 6.5 PEF 4.3 BC 1.05 1/1.05 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -19dB
6GHz -20dB
9GHz -14.dB
12GHz -11dB
18GHz -4dB

Assembly

Assembly Process AP026
Stripping Dimensions SD01
Centre Contact 1.07mm AF 96-HTS-75A
Outer Contact 8.23mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions SD01
Data Sheet 52 005 B6 FC REV C01 3
Assembly Process AP026
