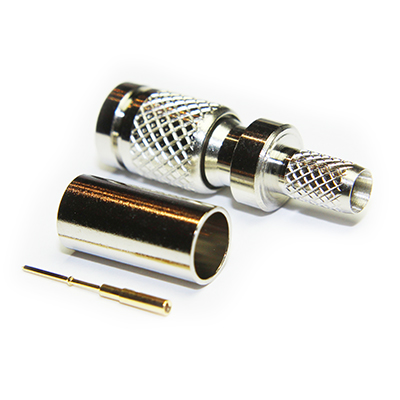

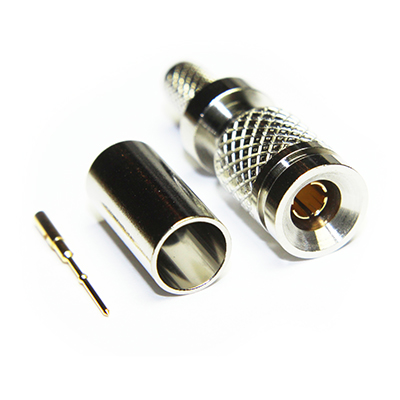

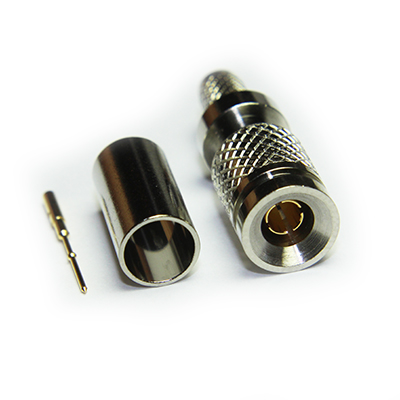

1.0/2.3 Crimp / Crimp Plug True 75 Ohm 1Ghz

52-005-D3-BF - Bulk 100

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RA7000 and similar cable in group BF. Bulk pack of 100.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 5.1g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 100

Suitable for Cables in Group BF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid
RA7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP026
Stripping Dimensions SD01
Centre Contact .95 Sq 96-HTS-75
Outer Contact 5.41mm Hex 96-HTS-75

Accessories

Centre Contact Crimp Tool 96-HTS-75
Outer Contact Crimp Tool 96-HTS-75
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions SD01
Data Sheet 52 005 B6 EF REV B00 2
Assembly Process AP026
