Back to 1.0/2.3 1.0/2.3 (DIN)

1.0/2.3 Screw Lock Crimp / Crimp Plug True 75 Ohm 3G

52-005A-B66-EF

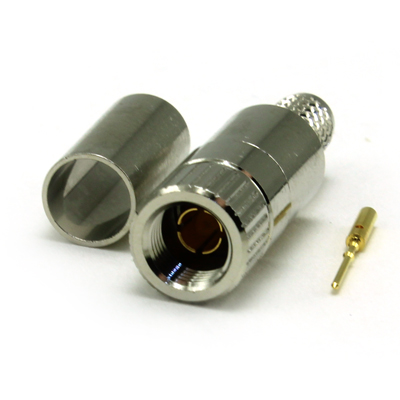

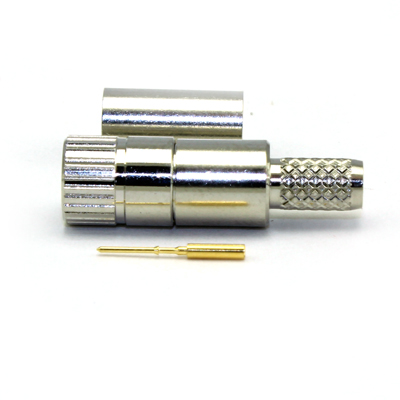

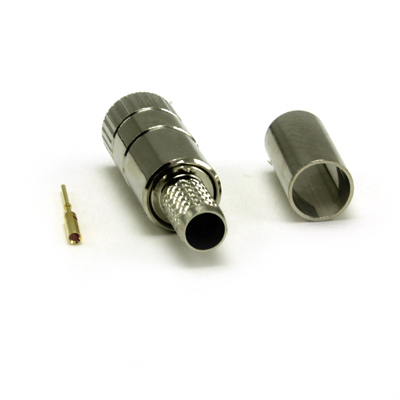

1.0/2.3 Screw Lock straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for all cable in group EF
The new 1.0/2.3 Screw Lock design is to Prevent Signal Loss in Vibrating Environments when mated to a bulkhead 1.0/2.3 Jack, as recommended by CoaXPress

From £13.14 each ex VAT
1-9 = £18.50 |  10-24 = £16.43 |  25-49 = £14.84 |  50-99 = £13.94 |  +100 = £13.14

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17db @ 3 GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 5.69g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Beryllium Copper
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group EF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 1855A EF 75 4.04 PEF 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 1865A EF 75 3.81 PEF 2.39 BC 0.54 1/0.54 Foil and Braid
Belden 4855ANH EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855P EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855R EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Canare L-2.5CFB EF 75 4.0 PEF 2.4 BC 0.50 1/0.50 Foil and Braid
Canare L-2.5CHD EF 75 4.2 PEF 2.59 BC 0.59 1/0.59 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -20.db
6GHz -23.dB
9GHz -26.dB
12GHz -17.dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact .95 Sq 96-HTS-75A
Outer Contact 5.41mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Stripping Dimensions SD01
Data Sheet 52 005A B66 EF REV B00 1
Assembly Process AP001
