52-005A-B66-FB

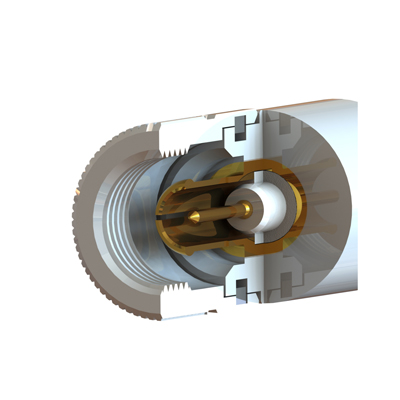

1.0/2.3 Screw Lock Crimp / Crimp Plug True 75 Ohm

1.0/2.3 Screw Lock straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for all cable in group FB
The New 1.0/2.3 Screw Lock Design is to Prevent Signal Loss In Vibrating Environments When Mated to a Bulkhead 1.0/2.3 Jack, as Recommended by CoaXPress

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 4.5GHz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-17db @ 12 GHz
Mechanical Specification
Design Standard	IEC 61169-29
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight	5.69g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group FB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 1505A	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.7	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505R	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Canare L-4CFB	FB	75	6.1	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Canare L-4CHD	FB	75	6.1	PEF	3.68	BC	0.82	1/0.82	Foil and Braid
Conducfil 14472	FB	75	5.9	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Draka 0.8/3.7AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Draka HD PRO 0.8/3.7 AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Image 720	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Percon VK6	FB	75	6	PEF	3.7	BC	0.81	1/0.81	Foil and Braid
Percon VK66	FB	75	6.14	PEF	3.7	BC	0.97	7/0.29	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Return Loss
3GHz	-21.db
6GHz	-18.dB

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	.95 Sq	96-HTS-76
Outer Contact	6.48 mm Hex	96-HTS-76

Accessories

Centre Contact Crimp Tool	96-HTS-76
Outer Contact Crimp Tool	96-HTS-76
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool	100-1023
1.0/2.3 Extractor Tool	96-1023
Protective PVC Cap	100-135

Downloads

Stripping Dimensions	SD01
Data Sheet	52 005A B66 FB A00 1
Assembly Process	AP001
