1.0/2.3 Crimp / Crimp Jack 75 Ohm

52-054-D6-FB

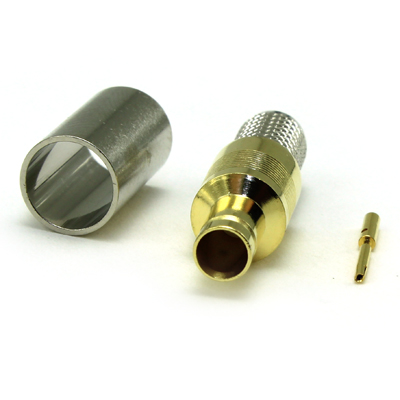

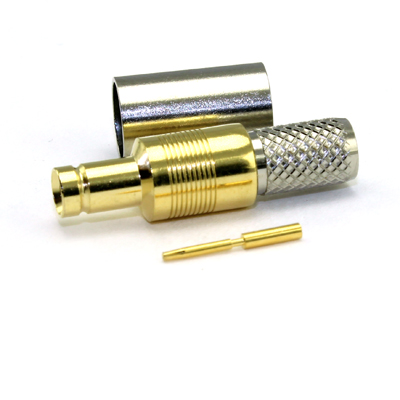

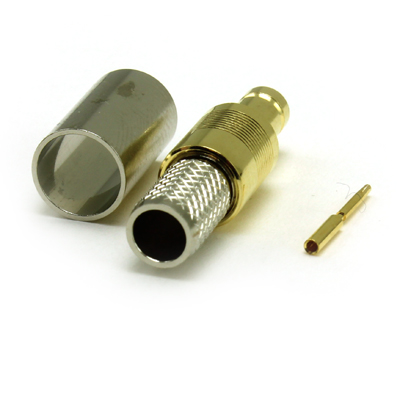

1.0/2.3 straight full crimp jack with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for all cable in group FB

From £3.70 each ex VAT
1-9 = £4.40 |  10-24 = £4.20 |  25-49 = £4.10 |  50-99 = £3.98 |  +100 = £3.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 220N min
Weight 3.55g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group FB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 1505A FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.7 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505R FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Canare L-4CFB FB 75 6.1 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Canare L-4CHD FB 75 6.1 PEF 3.68 BC 0.82 1/0.82 Foil and Braid
Conducfil 14472 FB 75 5.9 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Draka 0.8/3.7AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Draka HD PRO 0.8/3.7 AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Image 720 FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Percon VK6 FB 75 6 PEF 3.7 BC 0.81 1/0.81 Foil and Braid
Percon VK66 FB 75 6.14 PEF 3.7 BC 0.97 7/0.29 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD08
Centre Contact 0.95mm Sq 96-HTS-76
Outer Contact 6.48mm Hex 96-HTS-76

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions SD08
Data Sheet 52 054 D6 FB REV A01 1
Assembly Process AP001
