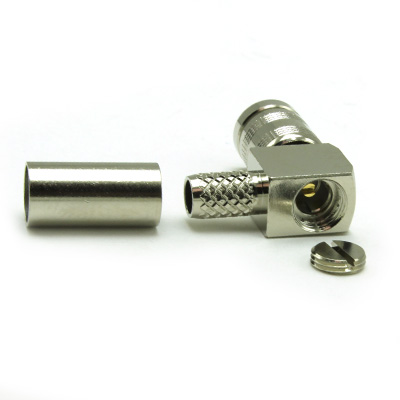

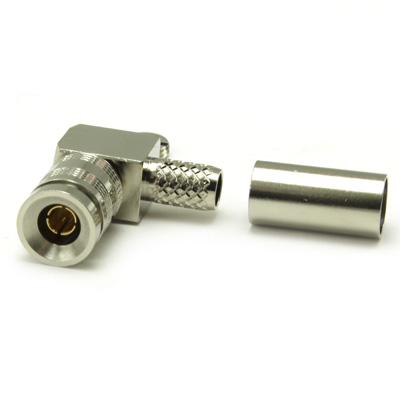

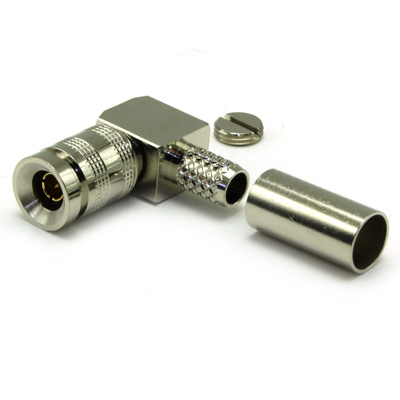

1.0/2.3 Right Angle Solder / Crimp Plug True 75 Ohm

52-104-B6-FA

1.0/2.3 Right Angle solder / crimp plug with gold plated centre and outer contact. Crimp sleeve have been annealed for enhanced performance. Suitable for all cable in group FA.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17 db @ 6GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 6.42g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group FA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belcom EventSeries HD600 LSZH FireFighter FA 75 4.5 PEF 2.8 BC 0.65 1/0.65 Foil and Braid
Belden 1855ECH FA 75 4.6 Foam 2.9 BC 0.65 1/0.65 Foil and Braid
Belden 1855ENH FA 75 4.45 PEF 2.8 TC 0.6 1/0.6 Foil and Braid
Belden 4855ELW FA 75 4.47 Foam 2.89 SCSC 0.66 1/0.66 Foil and Braid
Belden 70080NH FA 75 4.45 PEF 2.9 BC 0.65 1/0.65 Foil and Braid
Belden H123A02 FA 75 4.3 PEF 2.9 CU 0.65 1/0.65 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Canford SDV FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-LFH FA 75 4.6 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-UHD-LFH FA 75 4.5 PEF 2.8 BC 0.7 1/0.7 Foil and Braid
Canford SDV-X-LFH FA 75 4.5 PEF 2.8 BC 0.64 1/0.64 Foil and Braid
Conducfil 9890 FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Draka 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Draka HD PRO 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Image 360 FA 75 4.6 PEF 2.95 BC 0.6 1/0.6 Foil and Braid
Percon VK4 FA 75 4.4 PEF 2.6 BC 0.57 1/0.57 Foil and Braid
Percon VK5 FA 75 4.5 PEF 2.8 BC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
TACHII TCX-2.8CHD FA 75 4.4 PEF 2.7 BC 0.6 1/0.6 Foil and Braid
Van Damme SDI Vision FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1.5GHz -12 db
3.0GHz -19.4 db
4.5GHz -18.2 db
6.0GHz -17.3 db

Assembly

Assembly Process AP017
Outer Contact 5.41mm Hex 96-HTS-75

Accessories

Outer Contact Crimp Tool 96-HTS-75
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Data Sheet 52 104 B6 FA REV A02 2
Assembly Process AP017
