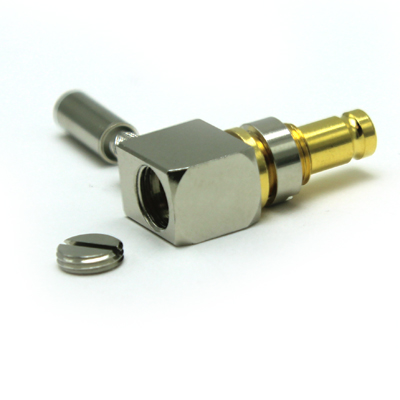

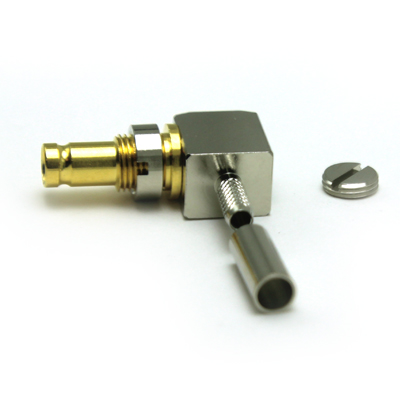

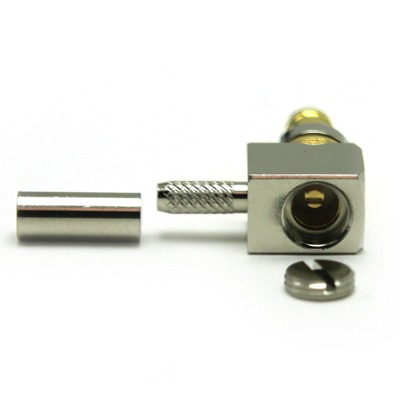

1.0/2.3 Right Angle Bulkhead Solder/Crimp Jack 75 ohm

52-271-D6-AB

1.0/2.3 right angle bulkhead mount solder crimp jack, with gold plated centre and outer contact. Crimp sleeve are annealed for enhanced performance. Suitable for use with RG179 and similar cable in group AB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 5.59g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP017
Outer Contact 3.25mm Hex 96-HTS-43

Accessories

Outer Contact Crimp Tool 96-HTS-43

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Data Sheet 52 271 D6 AB REV A00 1
Assembly Process AP017
