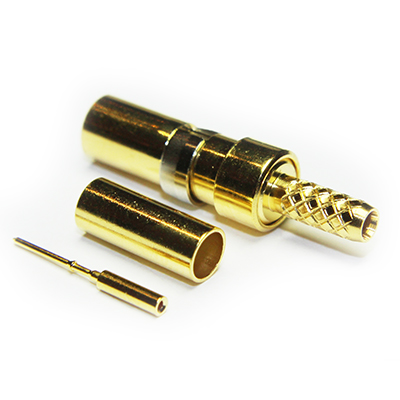

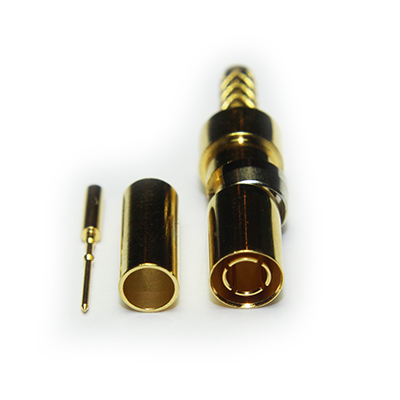

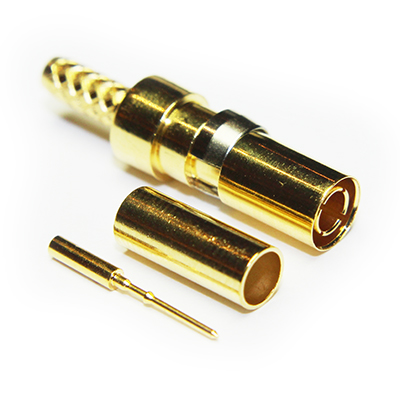

29-005-D3-AD

Electrical Specification
Impedance	50 Ohm
Frequency Range	1.5 GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	IEC:41626
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	20N min
Weight	1.82g
Mating Force	6.6Ncm max
Un-Coupling Force	6.6Ncm max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Beryllium Copper
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX22	AD	50	2.5	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
KX3	AD	50	2.54	PE	1.5	CCS	0.48	7/0.16	Copper Braid
RG174	AD	50	2.79	PE	1.52	BCCS	0.48	7/0.16	Copper Braid
RG188	AD	50	2.67	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
RG316	AD	50	2.49	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
Times LMR®100	AD	50	2.79	PE	1.52	BCCS	0.46	1/0.46	Foil and Braid
URM95	AD	50	2.3	PE	1.5	SCCS	0.46	1/0.46	Copper Braid
WBC100	AD	50	2.67	PE	1.52	CCS	0.46	1/0.46	Foil and Braid

Performance Data available on request, please contact COAX

Centre Contact Crimp Tool	96-336J
Outer Contact Crimp Tool	96-336J
