Micro BNC Straight Crimp / Crimp Jack Insert 75 ohm 12GHz

67-054-1-B126-EF1

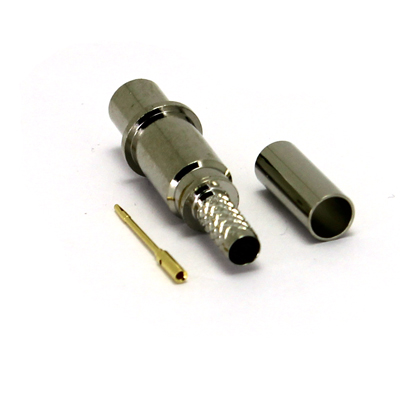

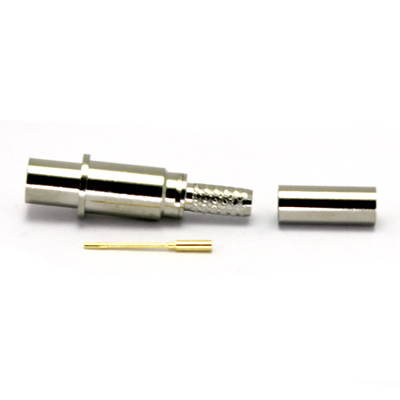

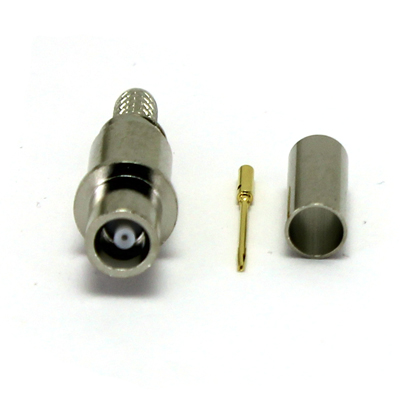

Micro BNC 75 ohm straight crimp Jack Insert. This true 75 ohm Jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated centre contact and annealed crimp zones these connectors offer a long term durable solution. Suitable for all cables in group EF.
** Now Tested To 18GHz **

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Return Loss -18 dB @ 12GHz
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 5.06g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group EF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 1855A EF 75 4.04 PEF 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 1865A EF 75 3.81 PEF 2.39 BC 0.54 1/0.54 Foil and Braid
Belden 4855ANH EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855P EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855R EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Canare L-2.5CFB EF 75 4.0 PEF 2.4 BC 0.50 1/0.50 Foil and Braid
Canare L-2.5CHD EF 75 4.2 PEF 2.59 BC 0.59 1/0.59 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD02
Centre Contact 1.07 Sq 96-HTS-77
Outer Contact 4.52mm Hex 96-HTS-77

Accessories

Centre Contact Crimp Tool 96-HTS-77
Outer Contact Crimp Tool 96-HTS-77

Downloads

Interface Dimensions C-MICRO-BNC
Stripping Dimensions SD02
Data Sheet 67 054 1 B126 EF1 REV A01 1
Assembly Process AP001
