67-054-B66-FB

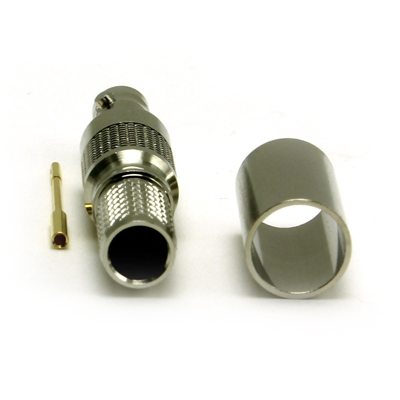

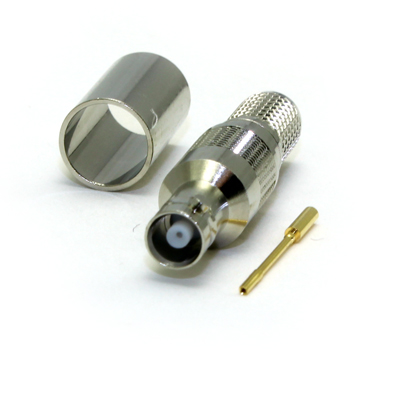

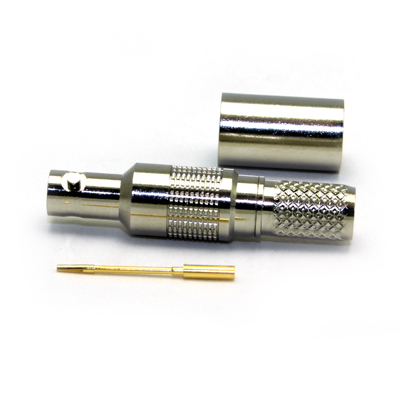

Micro BNC Straight Crimp / Crimp Jack 75 ohm 12GHz

Micro BNC 75 ohm straight crimp Jack. This true 75 ohm Jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated centre contact and annealed crimp zones these connectors offer a long term durable solution. Suitable for all cables in group FB.
** Now Tested To 18GHz **

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 12GHz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	10000 M-Ohm
Return Loss	-18 dB @ 12GHz
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight	5.06g
Mating Force	10N Max
Un-Coupling Force	10N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Beryllium Copper
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group FB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 1505A	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.7	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505R	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Canare L-4CFB	FB	75	6.1	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Canare L-4CHD	FB	75	6.1	PEF	3.68	BC	0.82	1/0.82	Foil and Braid
Conducfil 14472	FB	75	5.9	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Draka 0.8/3.7AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Draka HD PRO 0.8/3.7 AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Image 720	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Percon VK6	FB	75	6	PEF	3.7	BC	0.81	1/0.81	Foil and Braid
Percon VK66	FB	75	6.14	PEF	3.7	BC	0.97	7/0.29	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD02
Centre Contact	.95 Sq	96-HTS-76
Outer Contact	6.48mm Hex	96-HTS-76

Accessories

Centre Contact Crimp Tool	96-HTS-76
Outer Contact Crimp Tool	96-HTS-76
Micro BNC Plug Insertion And Extractor Tool	96-1132

Downloads

Interface Dimensions	C-MICRO-BNC
Stripping Dimensions	SD02
Data Sheet	67 054 B66 FB REV B01 1
Assembly Process	AP001
