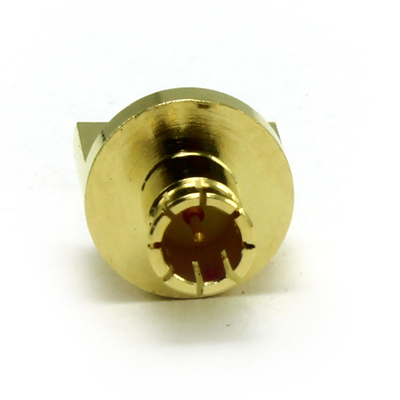

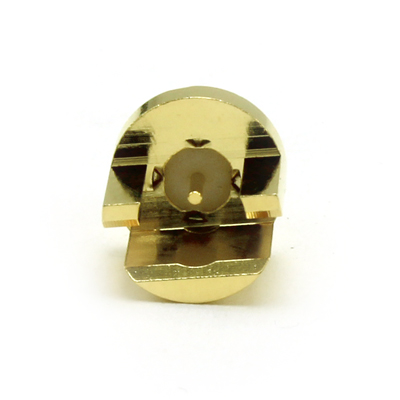

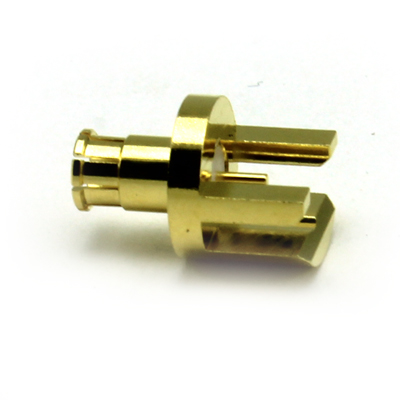

Micro BNC PCB End Launch Mount Push On Plug

67-409-D126-1.6

Micro BNC 75 ohm PCB End Launch Push On Plug . This true 75 ohm Plug is designed to Mate to a Micro BNC Jack without a Coupling Nut where space is an issue, Full HD 1080p applications and general use up to 12GHz. With gold plated inner and outer contacts.
** Now Tested to 18GHz **

From £2.60 each ex VAT
1-9 = £3.24 |  10-24 = £3.05 |  25-49 = £2.96 |  50-99 = £2.80 |  +100 = £2.60

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Weight 1.2g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Phos Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data 67 463 D66 16 PD 18Ghz

Assembly

Accessories

Downloads

Interface Dimensions C-MICRO-BNC
Data Sheet 67 409 D126 16 REV A03 1
Performance Data 67 463 D66 16 PD 18Ghz
