Mini BNC Crimp / Crimp Plug

63-005-B6-BG

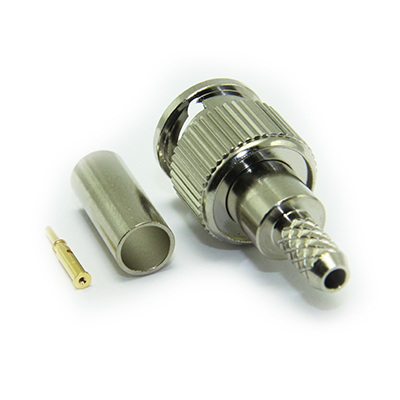

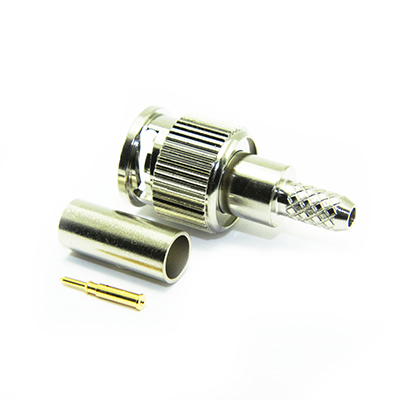

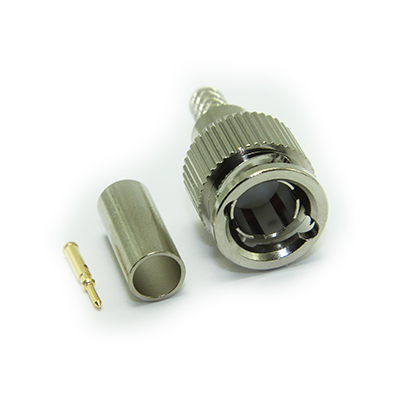

Mini BNC 75 ohm full crimp straight plug. This plug has a gold plated crimp centre contact, the outer contact is nickel plated. Both centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RA8000 and similar cables in group BG.

From £1.97 each ex VAT
1-9 = £3.29 |  10-24 = £2.74 |  25-49 = £2.47 |  50-99 = £2.10 |  +100 = £1.97

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 2GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group BG

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RA8000 BG 75 2.75 PEF 1.45 BC 0.31 1/0.31 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.07mm Sq 96-336J
Outer Contact 4.52mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-HTS-43

Downloads

Interface Dimensions C-MINI-BNC-75-OHM
Stripping Dimensions SD01
Data Sheet 63-005-B6-BG
Assembly Process AP001
