63-254-B6-BG

Shop online for RF Connectors and Cable Assemblies

Mini BNC Rear Mount Bulkhead Crimp / Crimp Jack

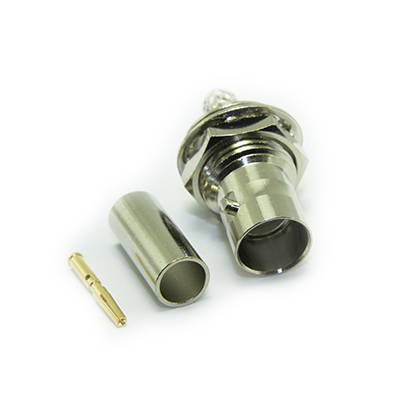

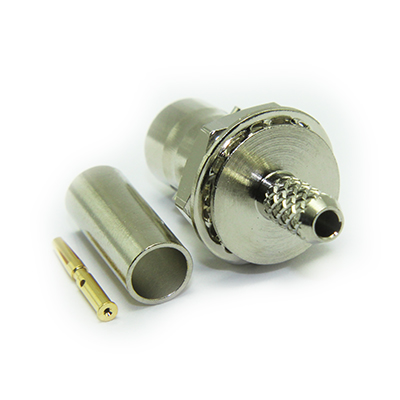

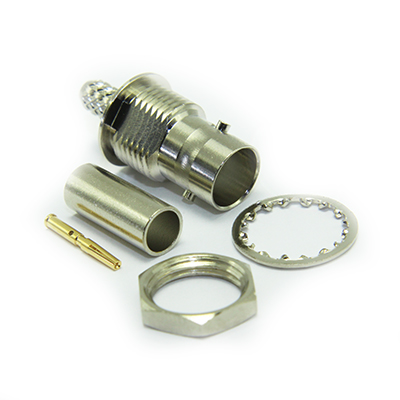

Mini BNC 75 ohm full crimp straight bulkhead jack This rear mounted jack has a gold plated crimp centre contact, the outer contact is nickel plated. Both centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with BT8000 and similar cables in group BG.

From £1.60 each ex VAT
1-9 = £1.80 | 10-24 = £1.75 | 25-49 = £1.70 | 50-99 = £1.65 | +100 = £1.60

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 2GHz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	60N min
Weight
Mating Force	10N Max
Un-Coupling Force	10N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group BG

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RA8000	BG	75	2.75	PEF	1.45	BC	0.31	1/0.31	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.07mm	96-336J
Outer Contact	3.84mm Hex	96-336J

Accessories

Centre Contact Crimp Tool	96-336J
Outer Contact Crimp Tool	96-336J

Downloads

Interface Dimensions	C-MINI-BNC-75-OHM
Stripping Dimensions	SD01
Data Sheet	63-254-B6-BG
Assembly Process	AP001
