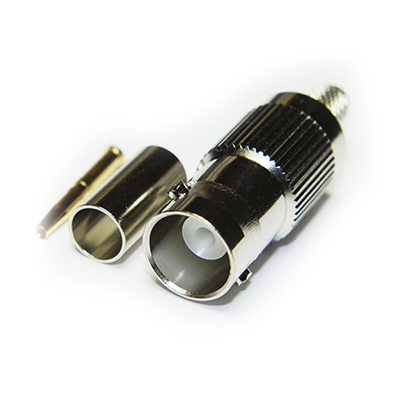

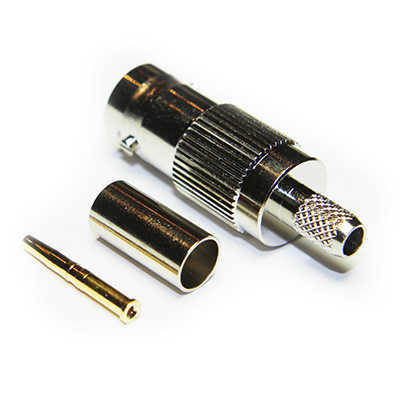

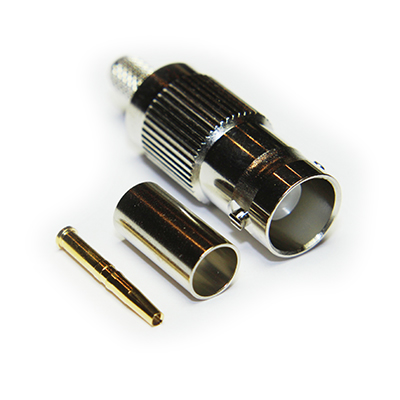

BNC Straight Crimp / Crimp Jack

10-054-A3-AK

BNC 50 ohm straight jack for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG223 or similar cables in group AK.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 220N min
Weight 11.55g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AK

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG142 AK 50 4.95 PTFE 2.95 CCS 0.94 1/0.94 DoubleCopperBraid
RG223 AK 50 5.38 PE 2.95 SC 0.89 1/0.89 DoubleCopperBraid
RG400 AK 50 4.95 PTFE 2.95 SCCS 0.97 19/0.19 DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-BNC
Stripping Dimensions SD01
Assembly Process AP001
