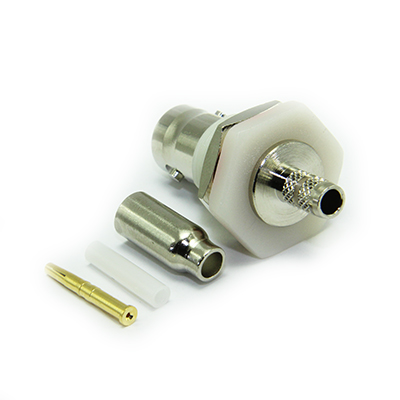

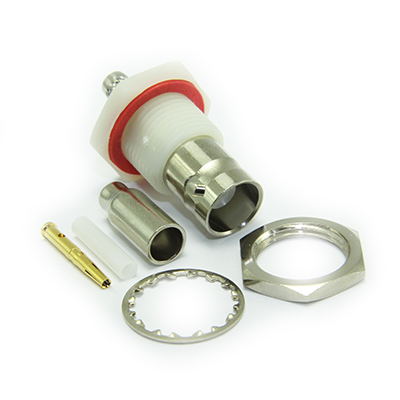

10-260-A3-AD - BNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	100N min
Weight	13.5g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Body Insulation	ABS
Insulator	Delrin
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX22	AD	50	2.5	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
KX3	AD	50	2.54	PE	1.5	CCS	0.48	7/0.16	Copper Braid
RG174	AD	50	2.79	PE	1.52	BCCS	0.48	7/0.16	Copper Braid
RG188	AD	50	2.67	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
RG316	AD	50	2.49	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
Times LMR®100	AD	50	2.79	PE	1.52	BCCS	0.46	1/0.46	Foil and Braid
URM95	AD	50	2.3	PE	1.5	SCCS	0.46	1/0.46	Copper Braid
WBC100	AD	50	2.67	PE	1.52	CCS	0.46	1/0.46	Foil and Braid

Performance Data available on request, please contact COAX
