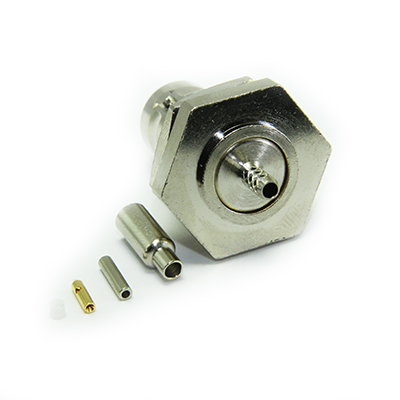

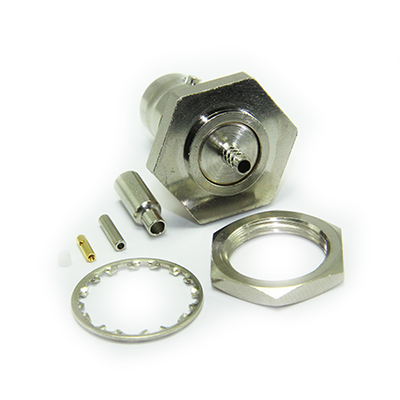

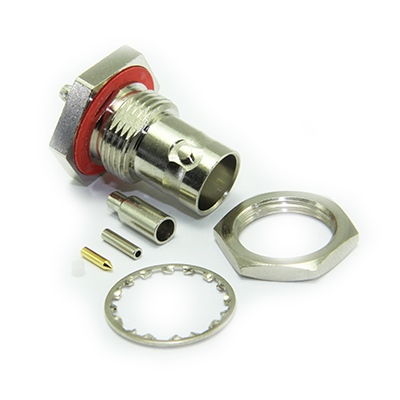

BNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( 5 part )

10-264-B3-AA

BNC 50 ohm straight bulkhead crimp jack, rear mounted, for applications up to 2.5GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG178 or similar cables in group A

From £1.53 each ex VAT
1-9 = £2.04 |  10-24 = £1.91 |  25-49 = £1.70 |  50-99 = £1.61 |  +100 = £1.53

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 2.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 16.3g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data 10 264 B3 AA PD
Return Loss
1 GHz -25.23 db
2.5 GHz -25 db
3 GHz -12.95 db

Assembly

Assembly Process AP002
Stripping Dimensions SD01
Centre Contact .9mm Sq 96-HTS75
Outer Contact 5.41mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-HTS75
Outer Contact Crimp Tool 96-336J
Hex Nut 100-027
Locking Washer 100-028
Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-50-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 264 B3 AA REV A00 2
Assembly Process AP002
Performance Data 10 264 B3 AA PD
