BNC Easy Fit / Clamp Plug

10-003-P3-RB

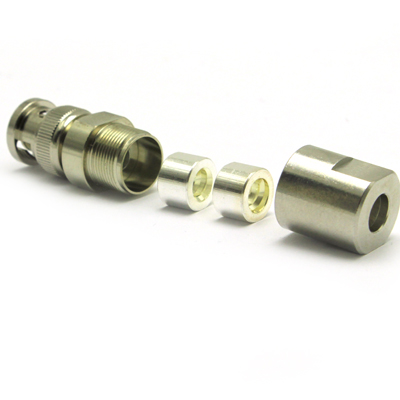

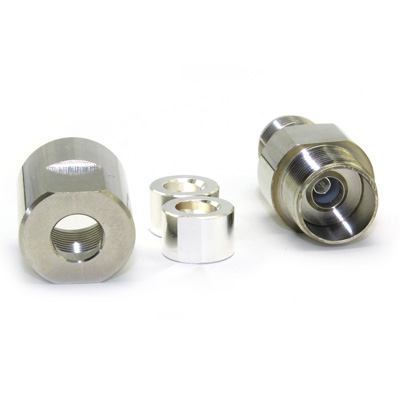

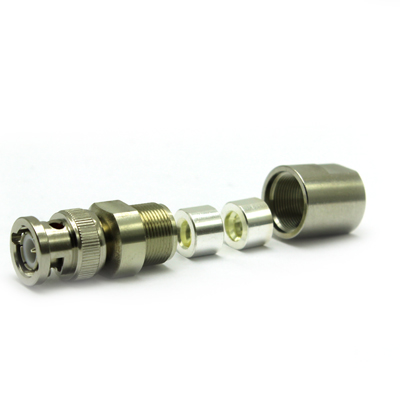

BNC 50 ohm straight Easy Fit ( Push On ) Contact with a Double Nut Type Clamp System Plug. Contact is silver plated and the outer body is white bronze plated . Suitable for SCF14-50J Helix Cable

From £2.35 each ex VAT
1-9 = £4.23 |  10-24 = £3.50 |  25-49 = £3.25 |  50-99 = £2.93 |  +100 = £2.35

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Clamp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 40.07g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Silver
Outer Contact Plating White Bronze
Pack Size 1

Suitable for Cables in Group RB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
1/4" Cellflex® RB 50 7.8 Foam 4.3 BCCAI 1.9 1/1.9 Solid Copper Tube
SCF14-50J 1/4" CELLFLEX RB 50 7.8 Foam 4.3 CCA 1.9 1/1.9 Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP027

Accessories

Downloads

Interface Dimensions C-50-Ohm-BNC
Data Sheet 10 003 P3 RB REV A00 0
Assembly Process AP027
