10-005-A0-AM

Shop online for RF Connectors and Cable Assemblies

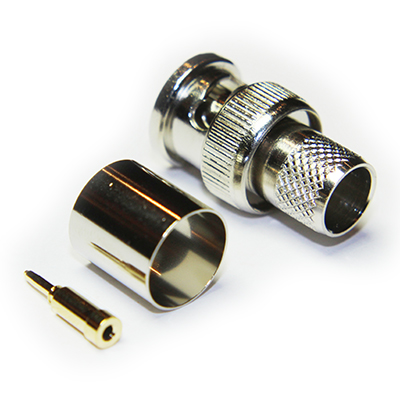

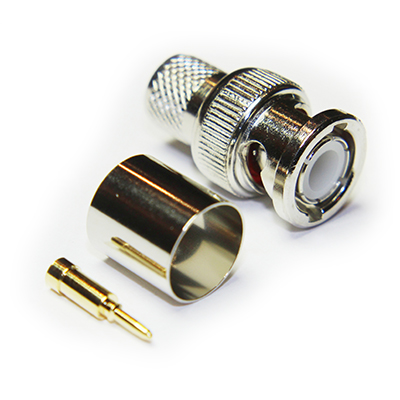

BNC Straight Crimp / Crimp Plug

BNC 50 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG11 or similar cables in group AM

From £0.85 each ex VAT
1-9 = £1.13 | 10-24 = £1.06 | 25-49 = £0.94 | 50-99 = £0.89 | +100 = £0.85

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	100N min
Weight	10.6g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AM

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX8	AM	75	10.3	PE	7.25	BC	1.2	7/0.4	CopperBraid
RG11	AM	75	10.29	PE	7.24	TC	1.2	7/0.4	CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	2.54mm Hex	96-106L
Outer Contact	10.9mm Hex	96-106L

Accessories

Centre Contact Crimp Tool	96-106L
Outer Contact Crimp Tool	96-106L
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-50-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10-005-A0-AM REV DB00-1
Assembly Process	AP001
