BNC Straight Crimp / Crimp Plug 50ohm

10-005-A3-DB

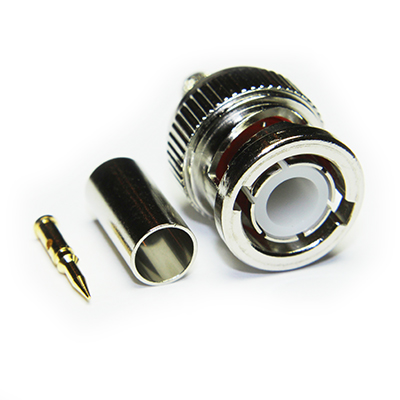

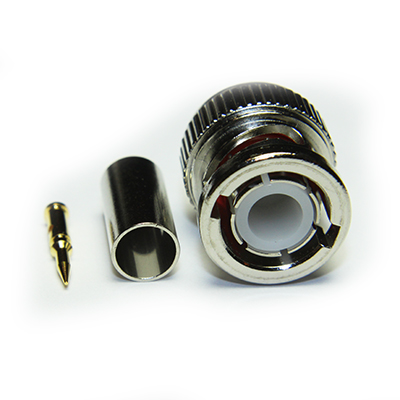

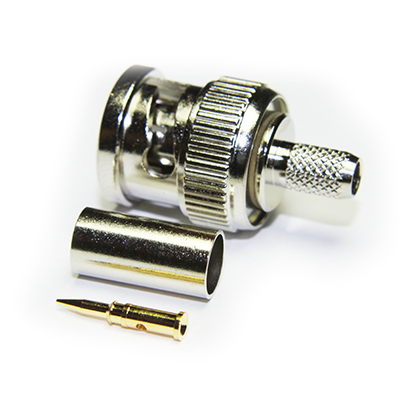

BNC 50 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Times LMR®240 or similar cables in group DB

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 150N min
Weight 8.7g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 155 A00 DB 50 5.4 PEF 3.9 BC 1.41 19/0.28 Foil and Braid
Belden 155 PE DB 50 10.3 PEF 3.9 BC 1.4 19/0.28 Foil and Braid
Times LMR®240 DB 50 6.1 PEF 3.81 BC 1.42 1/1.42 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-50-Ohm-BNC
Stripping Dimensions SD01
Assembly Process AP001
