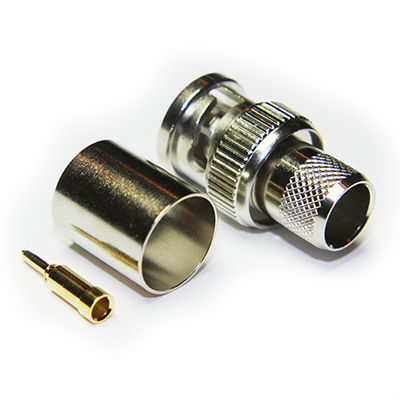

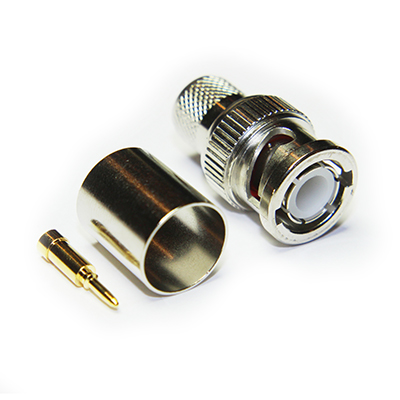

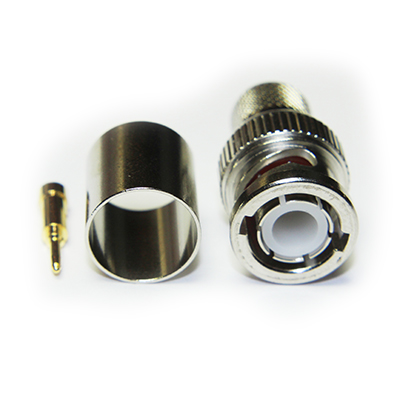

BNC Straight Crimp / Crimp Plug 50ohm

BNC 50 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG214 or similar cables in group AO

From £1.40 each ex VAT
1-9 = £1.87 | 10-24 = £1.75 | 25-49 = £1.56 | 50-99 = £1.47 | +100 = £1.40

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 3GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	220N min
Weight	16.7g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AO

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG214	AO	50	10.8	PE	7.24	SC	2.25	7/0.75	DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	10 005 B3 AO SD
Centre Contact	2.54 mm Hex	96-336K
Outer Contact	10.9 mm Hex	96-336K

Accessories

Centre Contact Crimp Tool	96-336K
Outer Contact Crimp Tool	96-336K
Rotary Cable Stripper	96-312S
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-50-Ohm-BNC
Stripping Dimensions	10 005 B3 AO SD
Data Sheet	10 005 B3 AO REV A00 1
Assembly Process	AP001
