Specification
| Electrical Specification |
| Impedance |
|
| Frequency Range |
|
| Dielectric Withstand Voltage |
1500 Veff |
| Insulation Resistance |
5000 M-Ohm |
| Mechanical Specification |
| Design Standard |
IEC 61169-8 |
| RoHS Compliant |
Yes |
| Mating Cycles |
250 |
| Contact Retention |
10N min |
| Cable Retention |
50N min |
| Weight |
8.2g |
| Mating Force |
13.6N max |
| Un-Coupling Force |
13.6N max |
| Environmental Specification |
| Operating Temperature |
-55 to +155 Deg C |
| IP Rating ( Mated ) |
IP64 |
| Materials |
| Centre Contact |
Phosphor Bronze |
| Outer Contact |
Brass |
| Insulator |
PTFE |

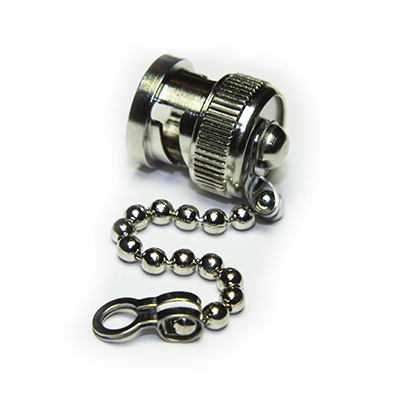

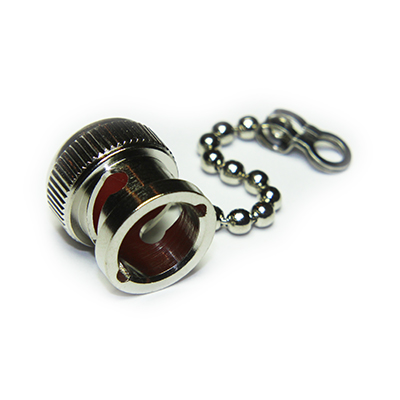

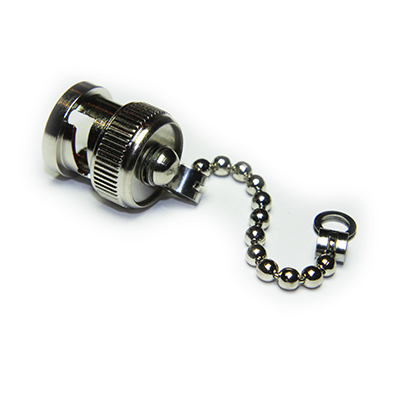

| Bayonet Cap |
Brass |
| Centre Contact Plating |
Gold |
| Outer Contact Plating |
Nickel |
| Pack Size |
1 |
Suitable for Cables in Group
N/A
No specific cables are associated with this connector
