10-054-A0-AG

Shop online for RF Connectors and Cable Assemblies

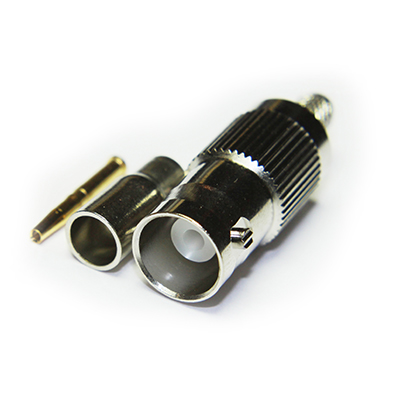

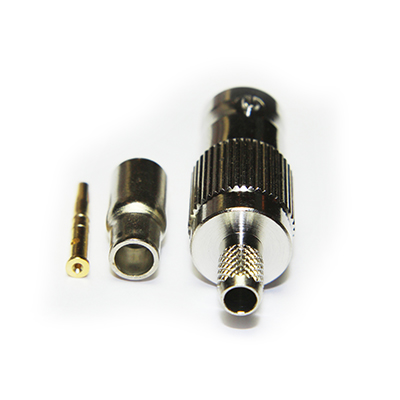

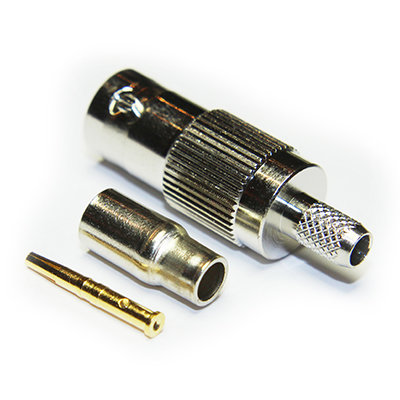

BNC Straight Crimp / Crimp Jack

BNC 75 ohm straight jack, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Mini RG59 white or similar cables in group AG.

From £0.85 each ex VAT
1-9 = £1.13 | 10-24 = £1.60 | 25-49 = £0.94 | 50-99 = £0.89 | +100 = £0.85

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	50N min
Weight	12.g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	Delrin
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AG

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Mini RG59 White	AG	75	3.6	PEF	1.9	CCS	0.41	1/0.41	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	5.41mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
Rotary Cable Stripper	96-312X
Black Strain Relief Boot	97-801-BK-04
White Strain Relief Boot	97-801-WH-04

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Assembly Process	AP001
