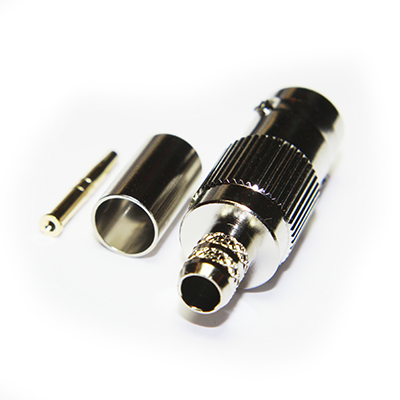

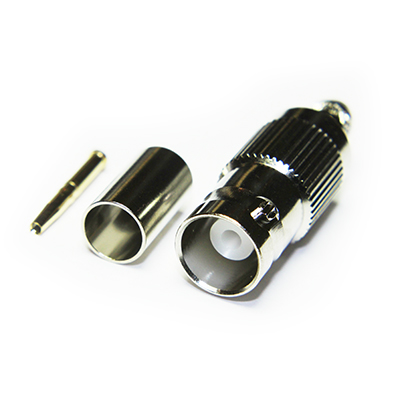

BNC Straight Crimp / Crimp Jack (1GHz)

10-054-A0-AI

BNC 75 ohm straight jack, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59B/U white or similar cables in group AI.

From £0.85 each ex VAT
1-9 = £1.13 |  10-24 = £1.60 |  25-49 = £0.94 |  50-99 = £0.89 |  +100 = £0.85

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -15.4 dB @ 1GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 120N min
Weight 11.8g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data 10-054-A0-AI-PD
Return Loss
1GHz -15.4db
2GHz -13.2dB
3GHz -10.8dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B
Black Strain Relief Boot 97-800-BK-06
Red Strain Relief Boot 97-800-RE-06
Green Strain Relief Boot 97-800-GN-06
Blue Strain Relief Boot 97-800-BU-06
Yellow Strain Relief Boot 97-800-YE-06
Brown Strain Relief Boot 97-800-BN-06
Grey Strain Relief Boot 97-800-GY-06
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-06
Violet Strain Relief Boot 97-800-VI-06
Crimp Tube 100-008

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 054 A0 AI REV A02 3
Assembly Process AP001
Performance Data 10-054-A0-AI-PD
